Kelso Distillery Diesel Storage | 30,000L StoraFUEL Installation
Partnering with J W Hinchliffe Ltd to Secure High-Capacity Fuel Infrastructure
Atlantis Tanks recently partnered with fuel infrastructure specialists J W Hinchliffe (Tanks) Ltd. Together, we completed the delivery of a high-capacity fuel storage system. This project directly supports the Kelso Distillery diesel storage upgrade. Specifically, the installation centered on a 30,000 Litre Steel Bunded Diesel Dispenser from our premium StoraFUEL range. We engineered this heavy-duty unit to handle the demanding operational requirements of commercial distillation facilities.
For modern distilleries, energy continuity remains a critical operational priority. Consequently, a steady fuel supply protects active distillation runs and secures daily transport logistics. To meet this need, we worked closely with Jack Hartley (TechIOSH) from the Leeds-based J W Hinchliffe Ltd team. As a result, Atlantis Tanks delivered a compliance-ready, highly secure storage system. This vital asset ensures long-term site resilience and strict environmental safety.
High-Capacity Engineering Built for Industrial Output

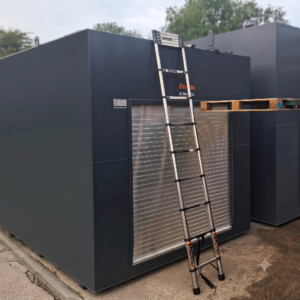

The foundation of this installation relies on the StoraFUEL 30,000L fuel tank. We optimized this specific unit to provide reliable, high-volume fuel dispensing under heavy commercial working conditions.
Verified Specifications & Capacity Metrics:
-
Nominal Capacity: 30,023 Litres
-
Brimful Capacity: 30,793 Litres
-
Outer Tank Dimensions: 6250mm (L) x 2500mm (W) x 2500mm (H)
-
Inner Tank Dimensions: 5100mm (L) x 2420mm (W) x 2495mm (H)
True credibility stems from rugged structural integrity. Therefore, we manufactured this tank in strict accordance with BS799 Part 5 standards. We utilized high-grade S275JR steel and added comprehensive internal tank bracing. This robust construction prevents structural stress when the tank reaches full capacity. Consequently, it establishes a reliable foundation for the long-term Kelso Distillery diesel storage infrastructure.
Mitigating Risk Through Advanced Environmental Containment
Operating an industrial distillery requires a proactive strategy for risk management. To satisfy strict regulatory demands, the StoraFUEL unit features a fully bunded design. The outer tank provides secondary containment capable of holding 110% of the total stored liquid. Thus, our design completely eliminates the risk of costly ground contamination.
Practical Safety & Control Features:
-
Secure Housing: A front-mounted, lockable cabinet door isolates internal dispensing equipment from unauthorized access.
-

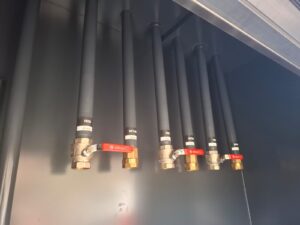

Flow Control: The secure cabinet houses a 2″ fill point. Additionally, it features a heavy-duty lever ball valve, a non-return valve, and a dedicated drip tray to capture operational spills.
-
Mechanical Overfill Prevention: The system features an aluminum-bodied 2″ Overfill Limiter. This mechanism remains fully compatible with clean diesel, biodiesel B30, and commercial heating oil. Furthermore, it threads directly into a 2″ BSPP full socket. It automatically stops fuel flow during bulk deliveries to eliminate human error.
-
Telemetry and Monitoring: A battery-powered hydrostatic gauge works alongside an integrated overfill alarm. As a result, plant managers receive clear, real-time volume tracking.
-
Emergency Readiness: We ship each unit complete with a pre-serviced powder fire extinguisher and a 15-litre spill kit.

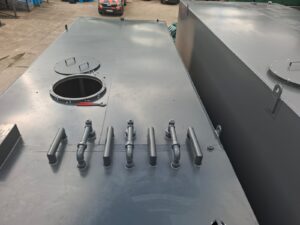

Additionally, the tank includes a 610mm Manway Access Point for long-term compliance inspections. This engineering feature allows maintenance technicians safe, unrestricted access to the inner tank during safety reviews.
Industrial-Grade Surface Protection for Harsh Weathering
Environmental exposure can cause premature wear on steel structures. Therefore, the tank’s exterior underwent rigorous surface preparation to ST2 standards before our team applied the final coatings.
Specifically, we protected the tank using a Zinfos 340WS solvent-borne, high-performance anti-corrosive system. This self-priming coating delivers a clean, mid-sheen 50% gloss finish. We applied it to a precise thickness profile of 150 microns wet / 75 microns dry. The tank features a standard RAL 7016 Anthracite Grey finish. Consequently, it provides a clean, professional aesthetic that integrates seamlessly into modern commercial environments.
Engineering Advisory: Our Zinfos coating system offers excellent durability in standard conditions. However, we recommend a specialized marine-grade paint specification for tank deployments near coastal areas.
Logistical Precision and End-to-End Delivery
Delivering and positioning a multi-tonne industrial asset requires expert logistical coordination. For this reason, we engineered the StoraFUEL unit with four heavy-duty lifting eyes for empty transport. Additionally, we mounted the structure onto full-width structural steel bearers. This design choice guarantees stable positioning on the concrete foundation pad.
By utilizing the Atlantis Delivery Service – StoraFUEL, our logistics team safely transported and precisely placed the complete tank package. As a result, we minimized operational disruption to the distillery’s active workflows.
