100 litres per minute Duplex Pumpset - Tank Mounted Application
PUM.DPS.T-100

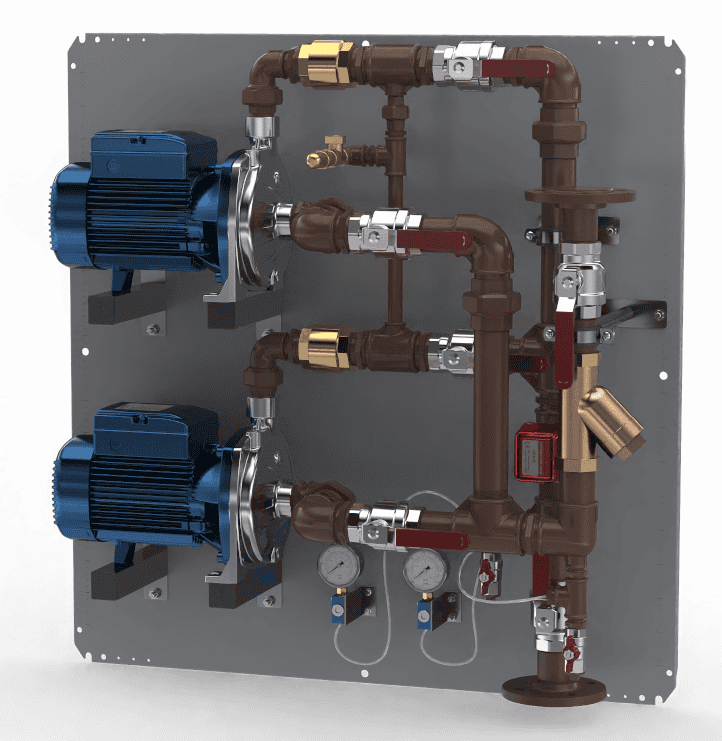

100LPM Duplex Pump & Control Panel

Rated 0 out of 5
(0 reviews)

The price shown is an RRP price. Trade discounts are available for trade only customers.

£5,466.00 Ex VAT£6,559.20 Inc VAT

SKU: PUM.DPS.T-100 Categories: , ,

Description

100LPM Duplex Pump & Control Panel (230V) – PUM.DPS.T-100

This fuel pump is mainly used to send fuel from a generator bulk tank to the client’s generator set, either directly or via a day service tank.

Fuel is transferred at a flow rate of up to 100 litres per minute through the dual centrifugal pumps. The actual installed system flow will depend on client’s fuel pipework type, length, bore size and route.

Features:

  • Pump Outlet Filter with visual pop-up blockage indication
  • Interconnecting stainless steel pipe fittings
  • Digital Flow Meter
  • Pump Inlet Strainer
  • Manual Isolation Valves
  • Non-Return Valves
  • Bypass Valve
  • Float Switch (for Leak Detection of tank compartment floor)
  • Flow Switch
  • Electrical isolator
  • LED light fixed to backplate

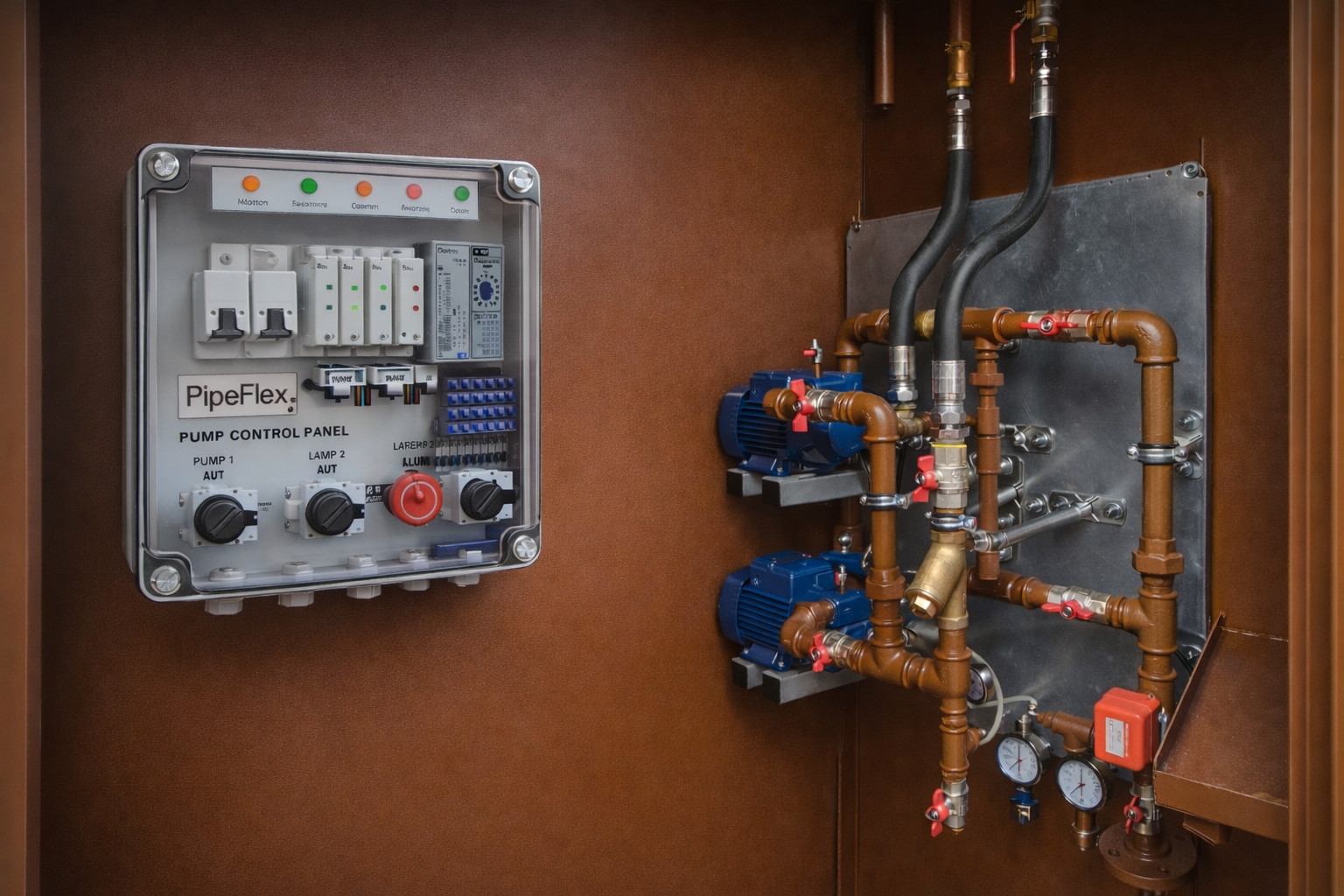

  • 240v Alternating Pump Set Control Panel:
    • Hand/Auto Switch
    • Alarm Auto/Test switch
    • Audible and Visual Alarms on Panel
    • Switched outputs to business management system (BMS); Pump 1 Tripped / Pump 2 Tripped / Power Failure / Common Alarm
    • Control panel to work in conjunction with client generator day tank/belly tank float switches for auto fuel transfer.

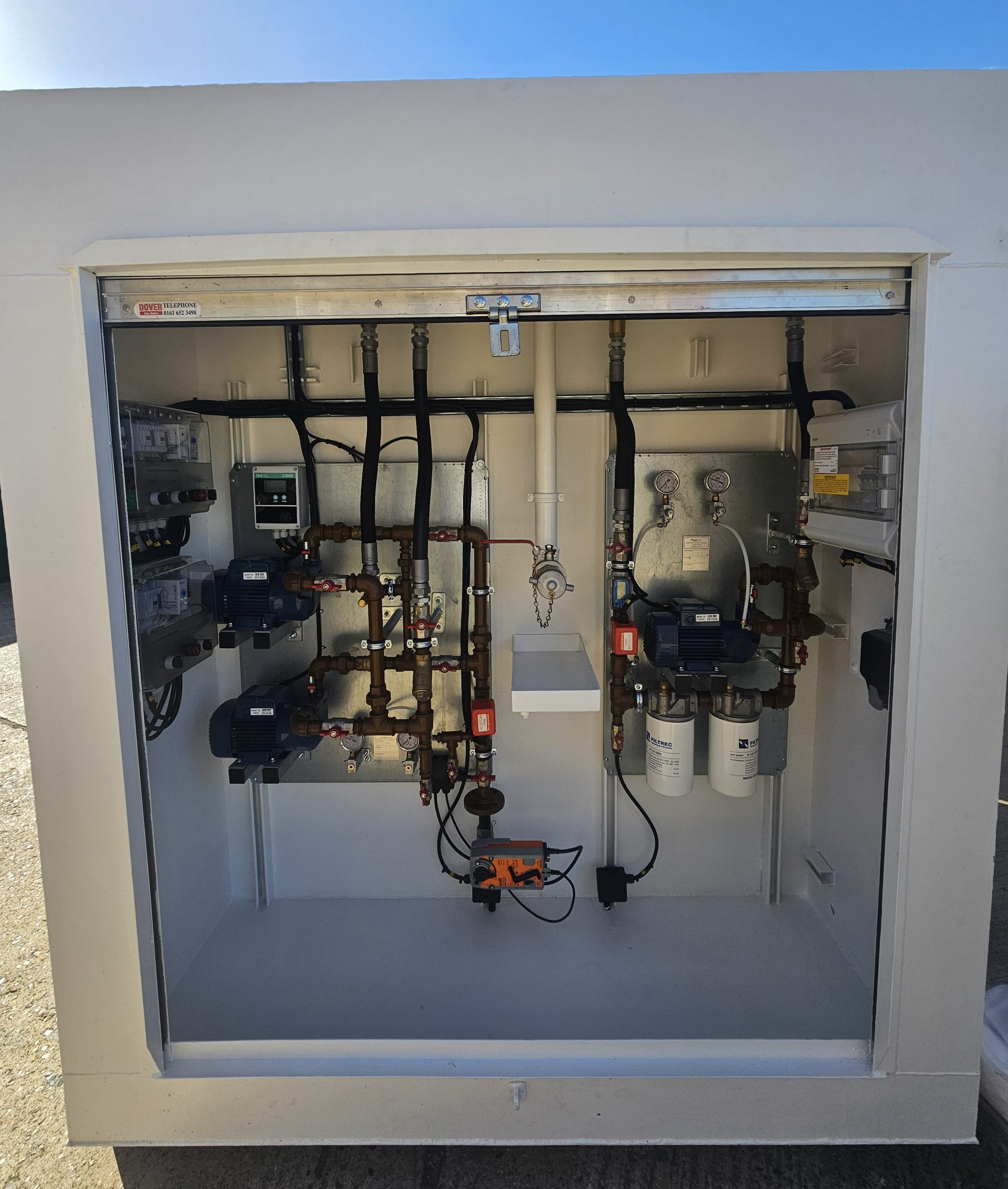

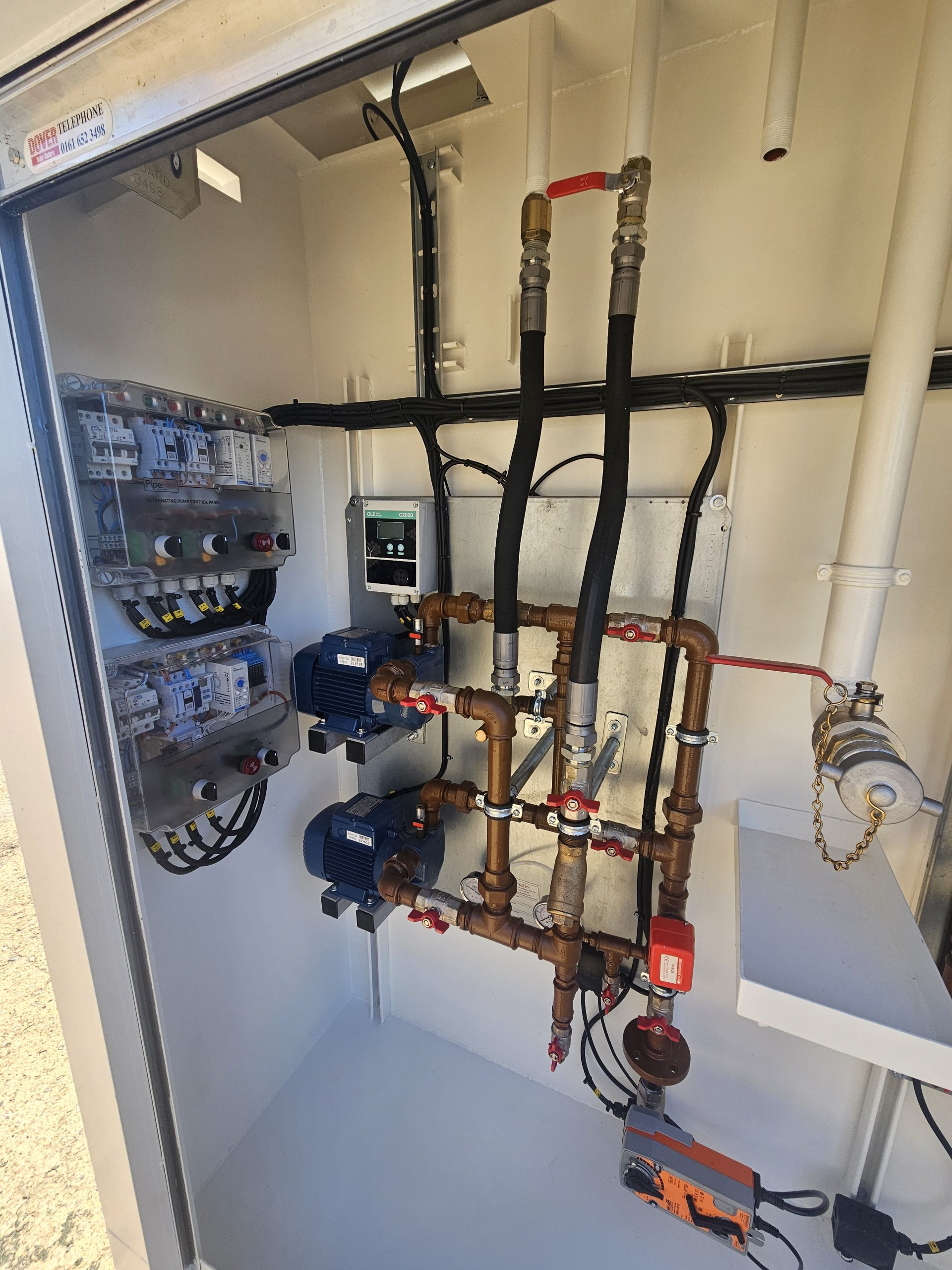

  • Arrangement mounted on backplate, suitable for securing inside weather protected tank compartment.

Arrangement mounted on backplate, suitable for securing inside weather protected tank compartment.

See Technical Documents tab for:
– Datasheet
– Operating Instructions
– General Arrangement Drawing

Specification Document

PUM.DPS.T-100_Datasheet

Download Document

General Arrangement Drawing

Illustration showing fitted accessory

Operating Instructions

Download Document
