PUM.AOP.1:1-3M

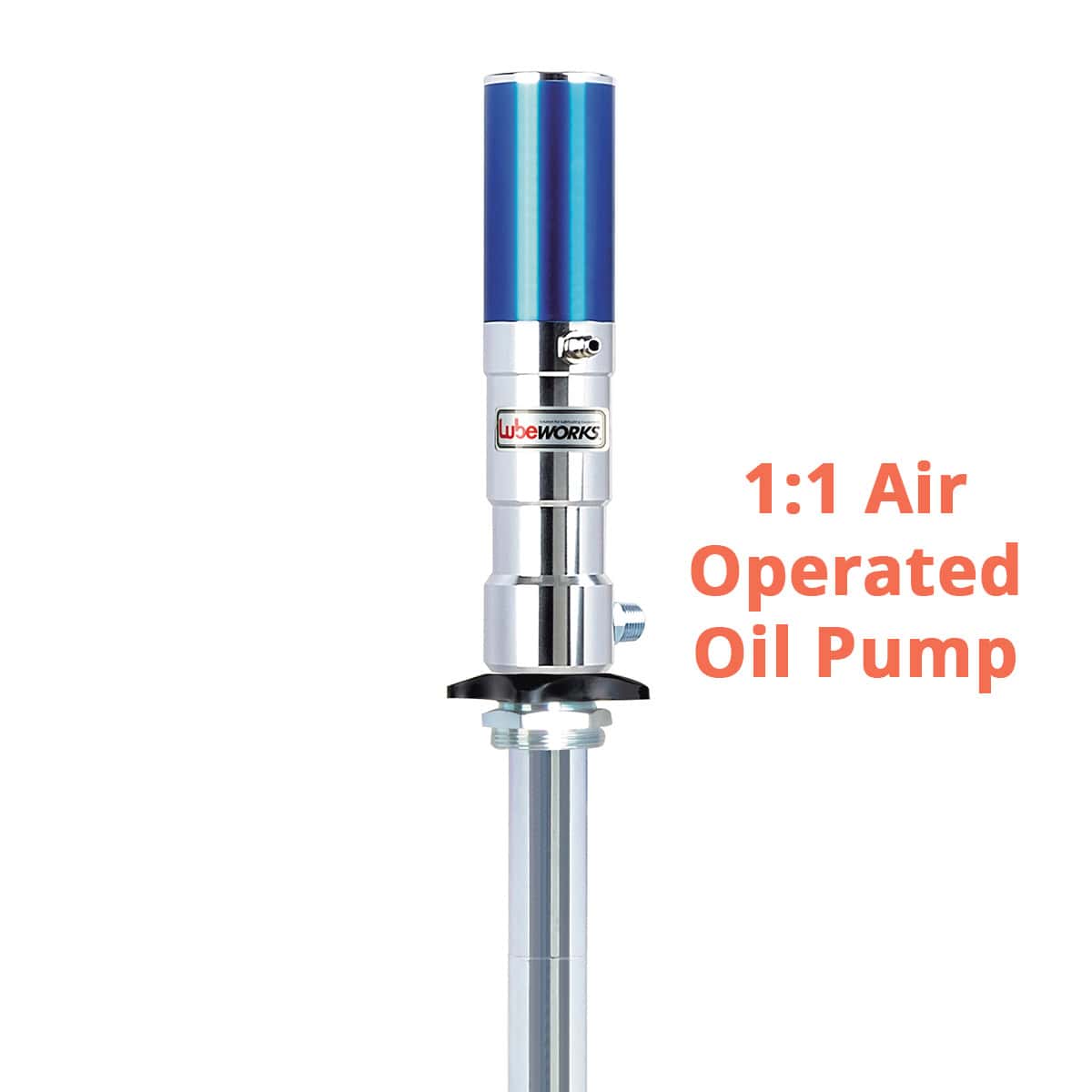

1:1 Air Operated Oil Pump and Air Regulator with 3m Hose & Digital Nozzle

Name: 1:1 Air Operated Oil Pump and Air Regulator with 3m Hose &amp; Digital Nozzle
Brand: Atlantis Tanks
SKU: PUM.AOP.1:1-3M
Price: 854.40
Availability: InStock

Rated 0 out of 5

If you're Trade - Buy Direct / Login to view price

Our Resellers

SKU: PUM.AOP.1:1-3M Categories: Air Operated Pumps, Accessories, Pumps

Description

1:1 Air Operated Oil Pump and Air Regulator with 3m Hose & Digital Nozzle – PUM.AOP.1:1-3M

This air operated pump kit has been specially designed to work with our new Imperium® Lube Oil Tank range

Description

This pneumatic oil pumps is designed and constructed to give outstanding performance in all workshop environments. and is suitable to cover every type of application in the automotive, agricultural, commercial vehicle and heavy plant workshops.

Low noise level air motors are used that will provide years of trouble free service. Typically used in workshops, service stations, fast lube centres, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc

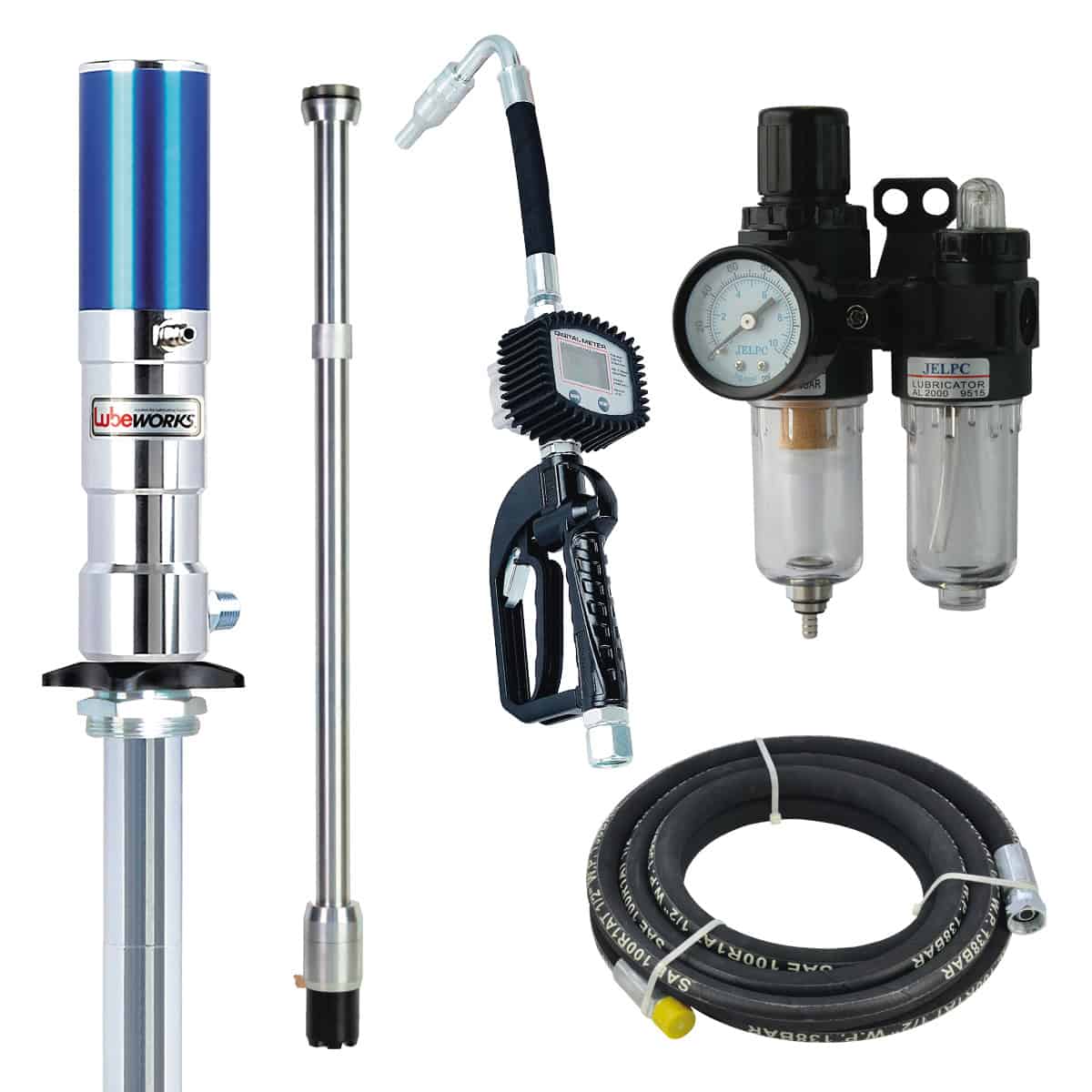

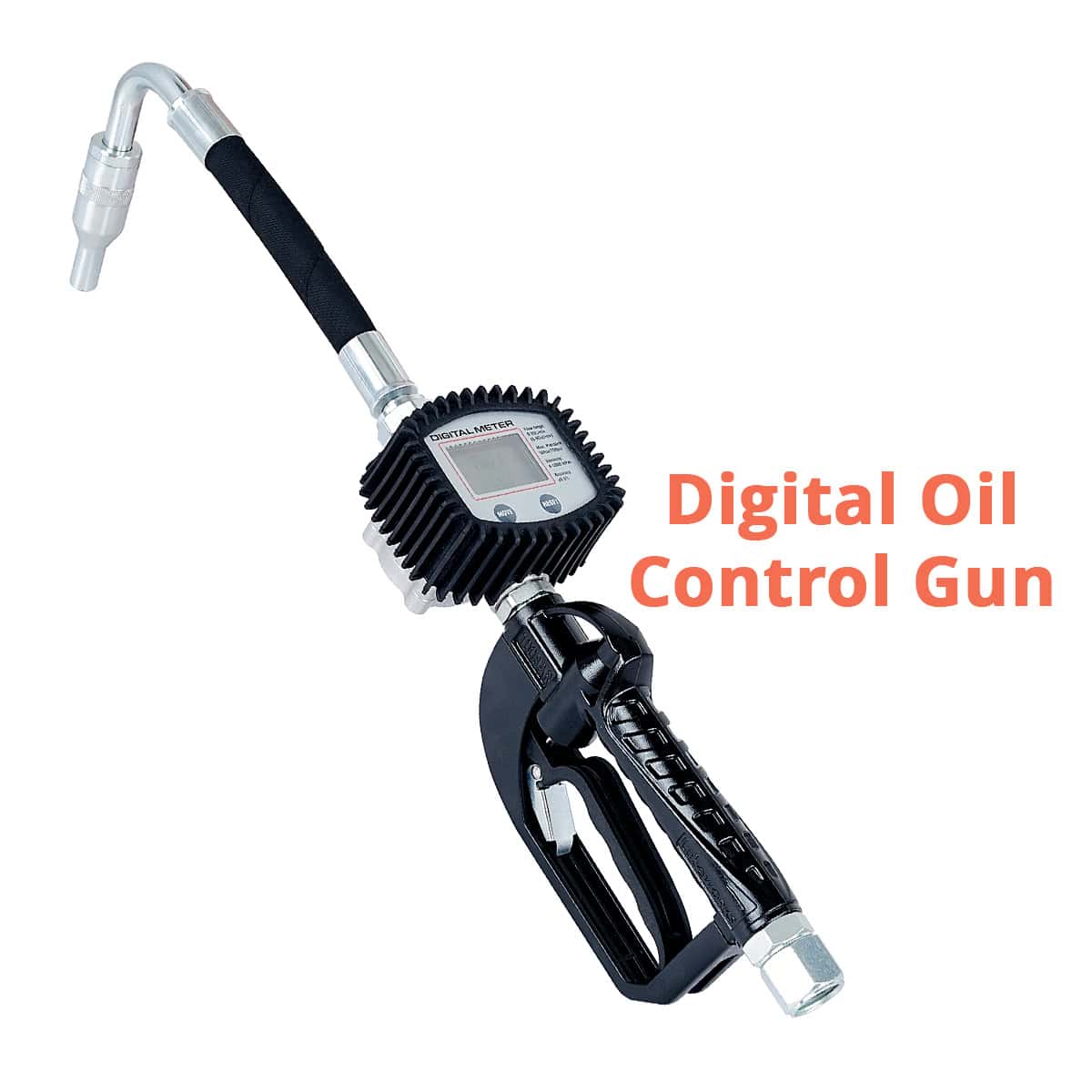

This kit is supplied with a 3 meter delivery hose and a digital nozzle

Please note that this kit requires a compressed air feed hose and connection to operate properly

What does a 1:1 ratio mean?

This means that the pump’s fluid discharge pressure is equal to the air inlet pressure. For every one PSI of air pressure supplied to the pump, it generates one PSI of fluid pressure. This type of pump is ideal for transferring low-viscosity fluids over short distances and is often used in applications where a gentle, low-pressure transfer is needed.

Pump Specifications:

Ratio: 1:1
Working Pressure: 5 – 10 bar (70/150psi)
Max. Fluid Pressure: 8 bar (115psi)
Air Consumption: @8 bar – 100L/min
Output Capacity: 18L/min
Suction Tube Diameter: 42mm
Air Inlet Connection: 1/4″ quick plug
Oil Delivery Connection:1/2″ male
Max. Viscosity: SAE120
Test media SAE30 oil at 20°C through 2mtr hose length free outlet

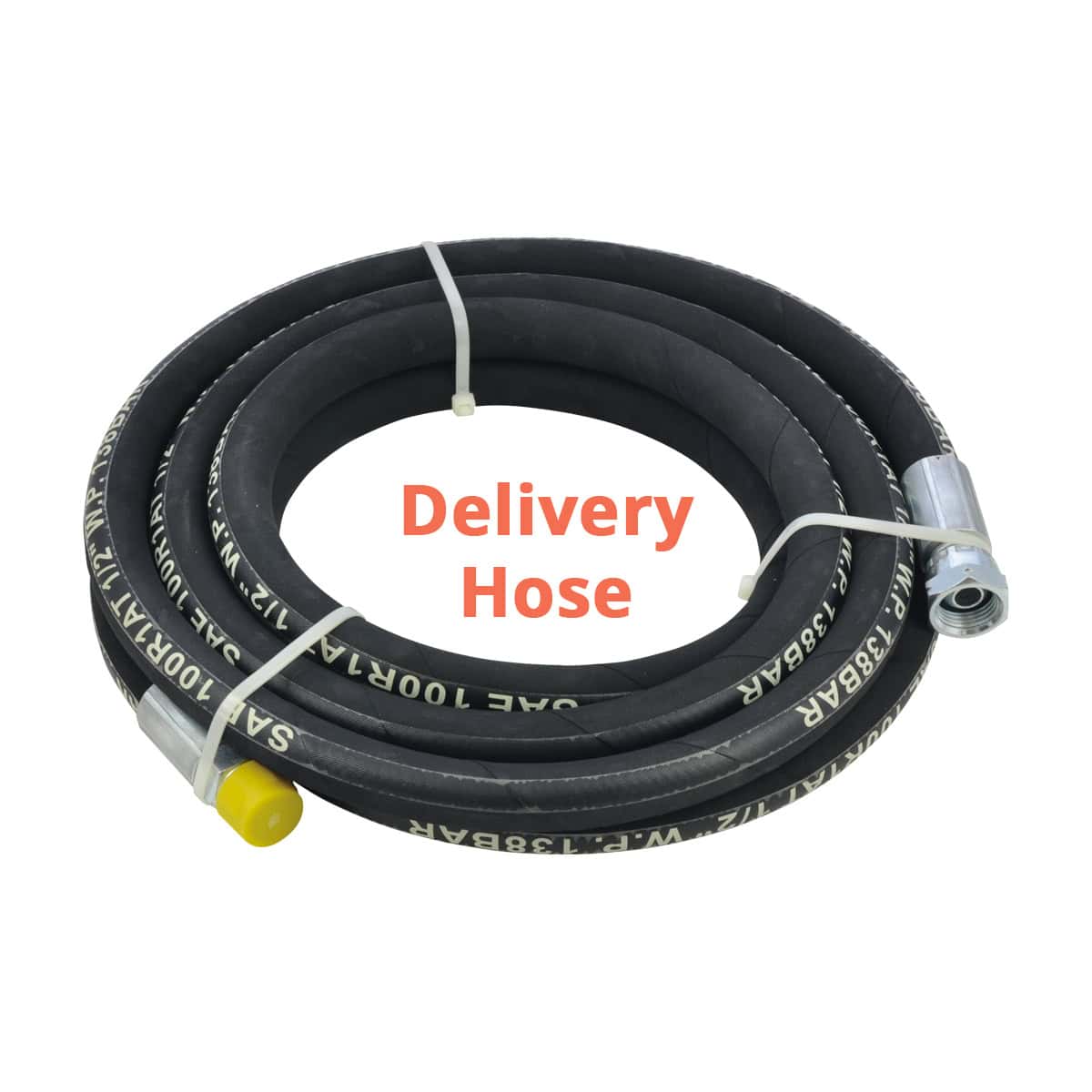

3 Metre delivery hose & digital nozzle

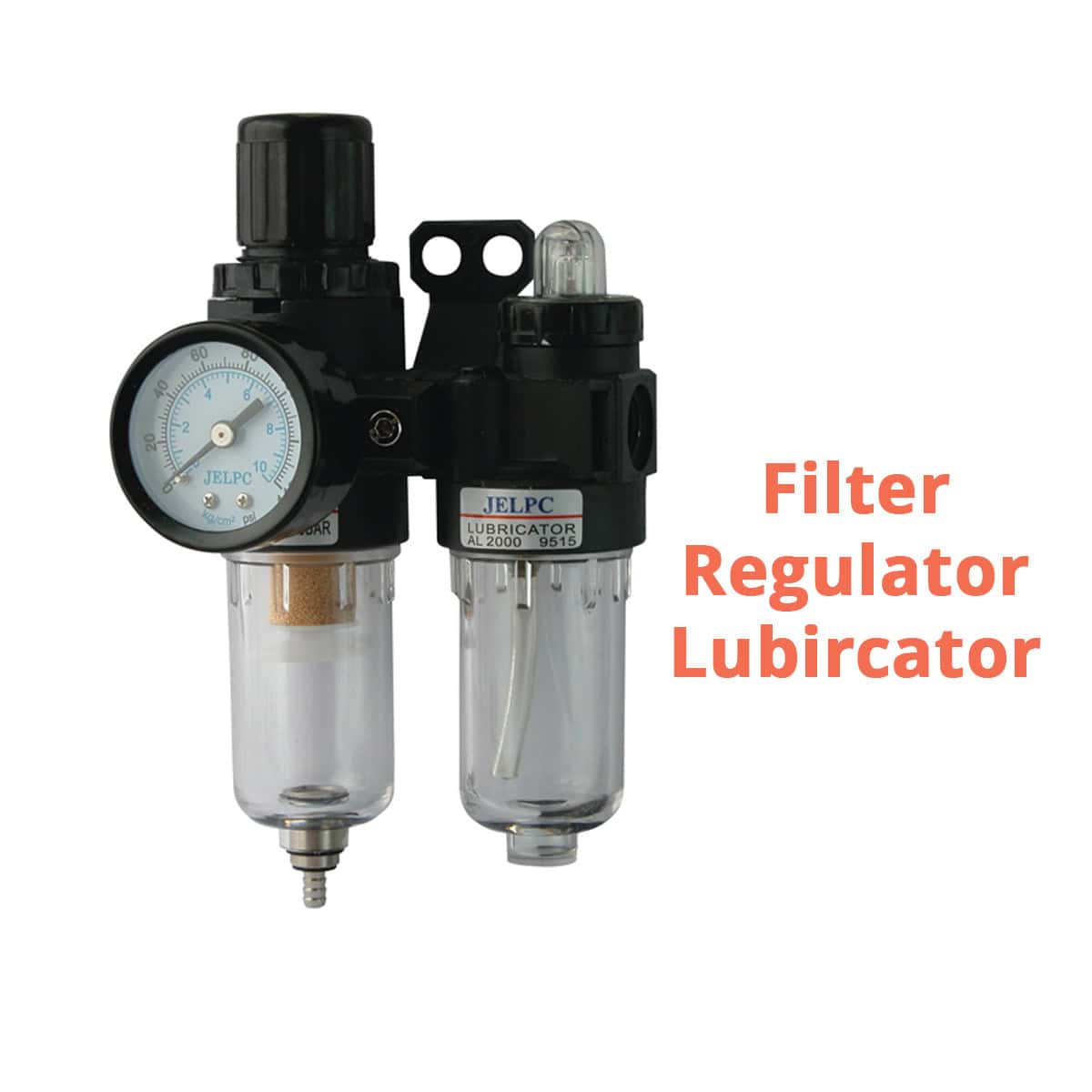

Air Inlet and Regulator Specifications:

Operating fluid: Air
Adjustable pressure range: 0.5 – 8.5 bar
Max working pressure: 15 bar
Inlet/outlet: ¹/₈” – ¹/₂” BSP
Temp range: 5-60°C
Suggested Lubricant: ISO VG32 or same grade oil
Material (body) cup: Die cast aluminium PE
Capacity of oil cup 25cc

Need a different Lube Oil Pump?

We currently offer no less than 5 air operated lube oil pumps. Therefore, if this pump model doesn’t suit your workshop, please download our ‘Lube Oil Pump Selector Guide’ from the Technical Documents tab on this web page. Or call our sales team on: 0330 990 1100

Specification Document

Lube Oil Pump Selector Guide

Download Document
