Description

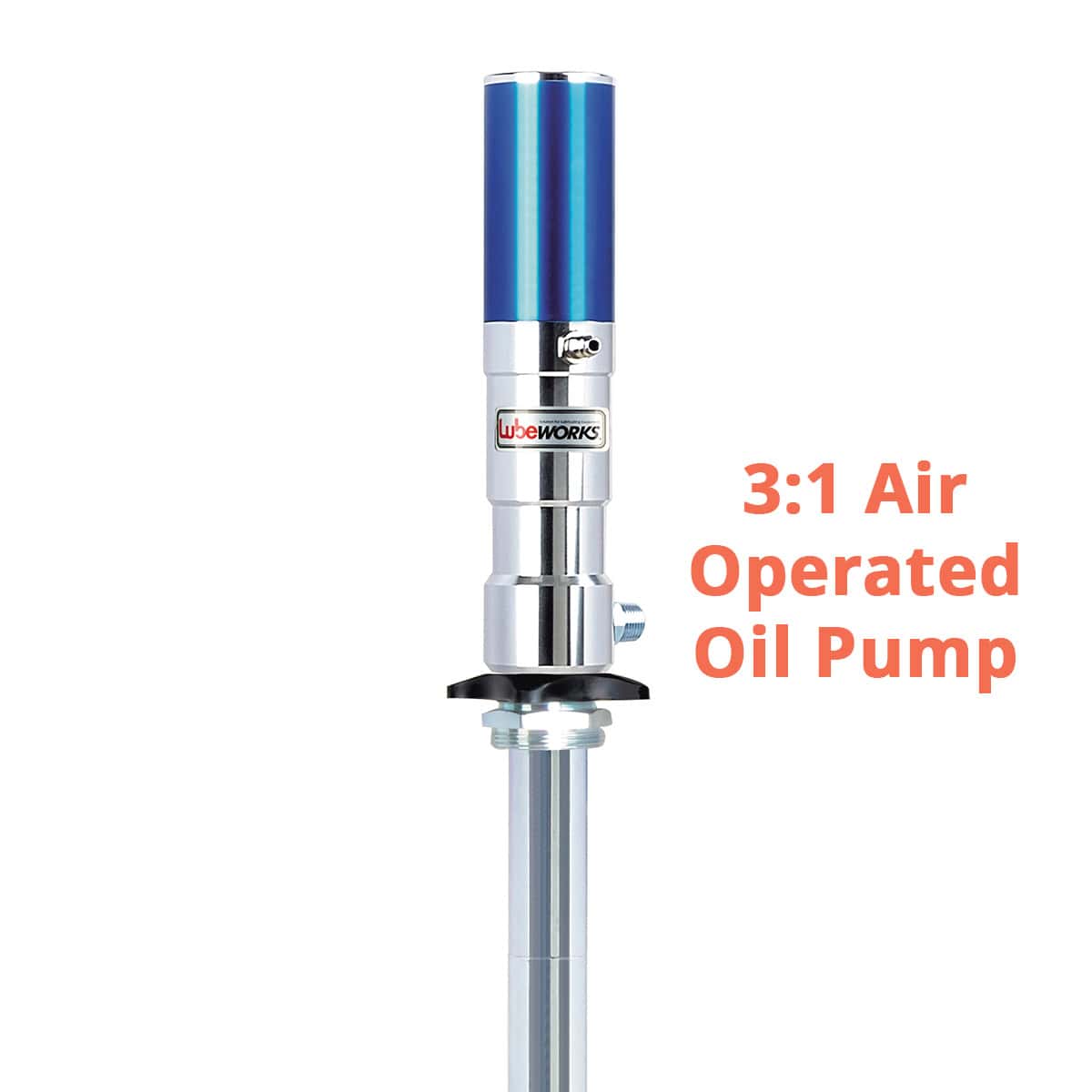

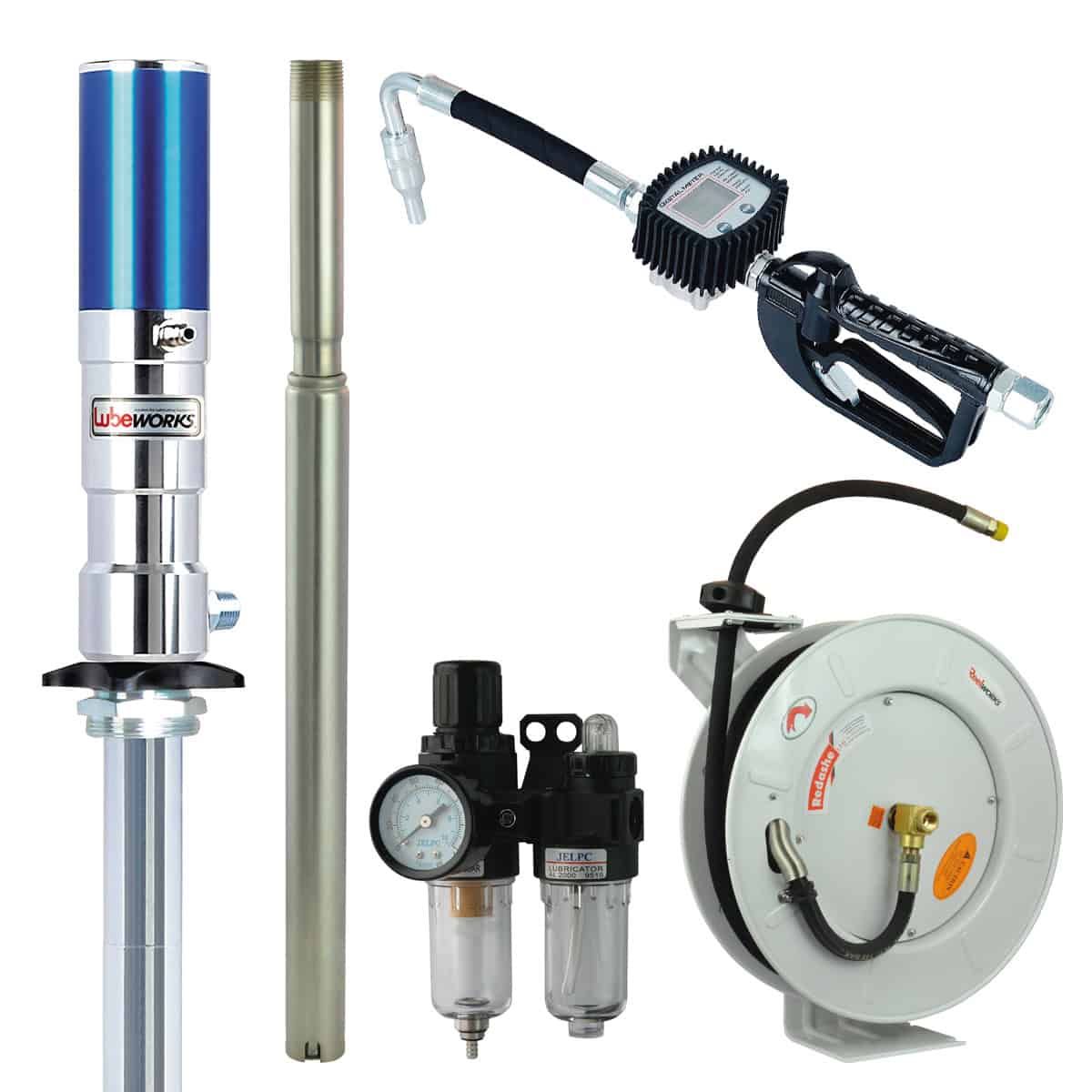

3:1 Air Operated Oil Pump and Air Regulator with 15m Hose Reel & Digital Nozzle – PUM.AOP.3:1-15M
This air operated pump kit has been specially designed to work with our new Imperium® Lube Oil Tank range
Description
This pneumatic oil pump is designed and constructed to give outstanding performance in all workshop environments. and is suitable to cover every type of application in the automotive, agricultural, commercial vehicle and heavy plant workshops.
Low noise level air motors are used that will provide years of trouble free service. Typically used in workshops, service stations, fast lube centres, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc

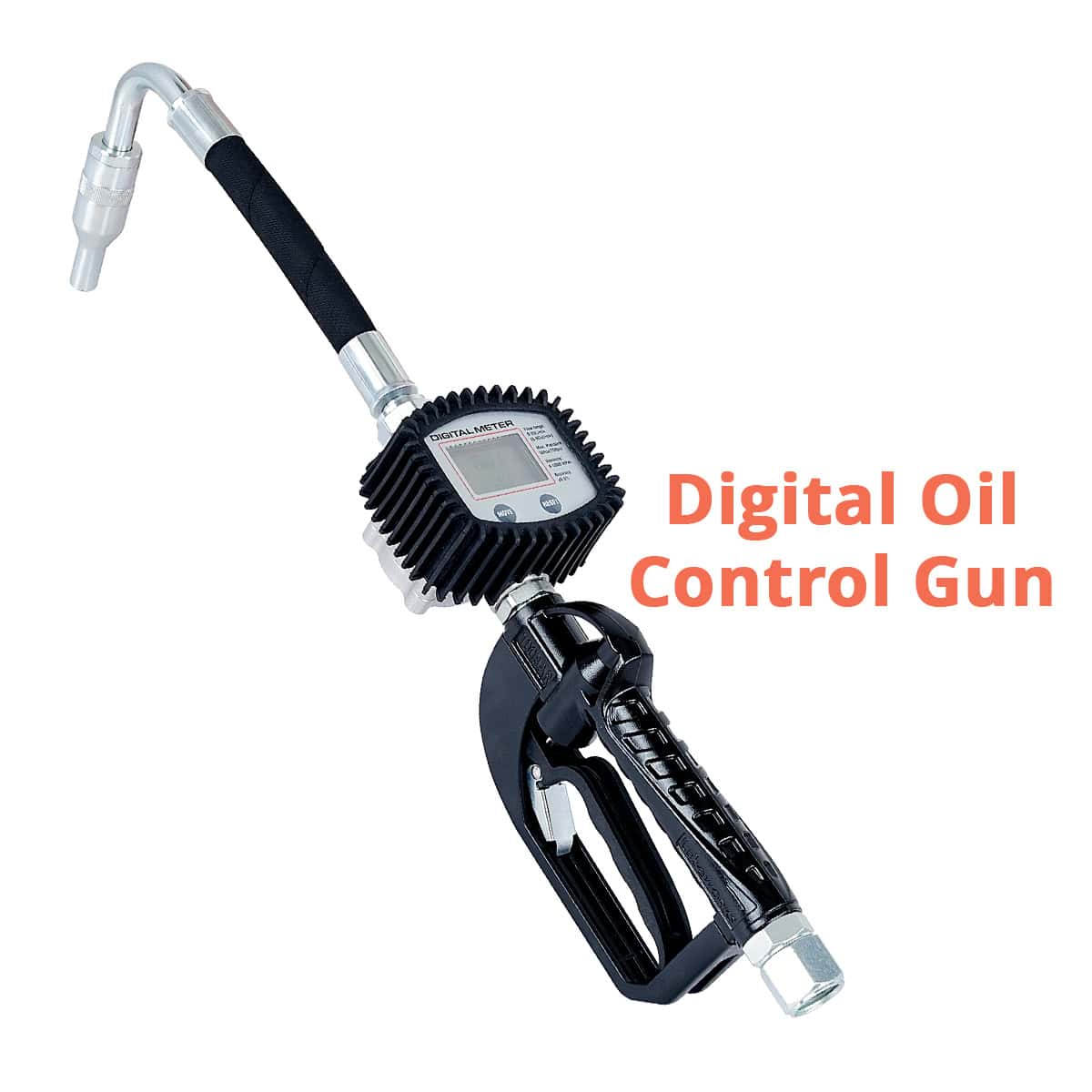

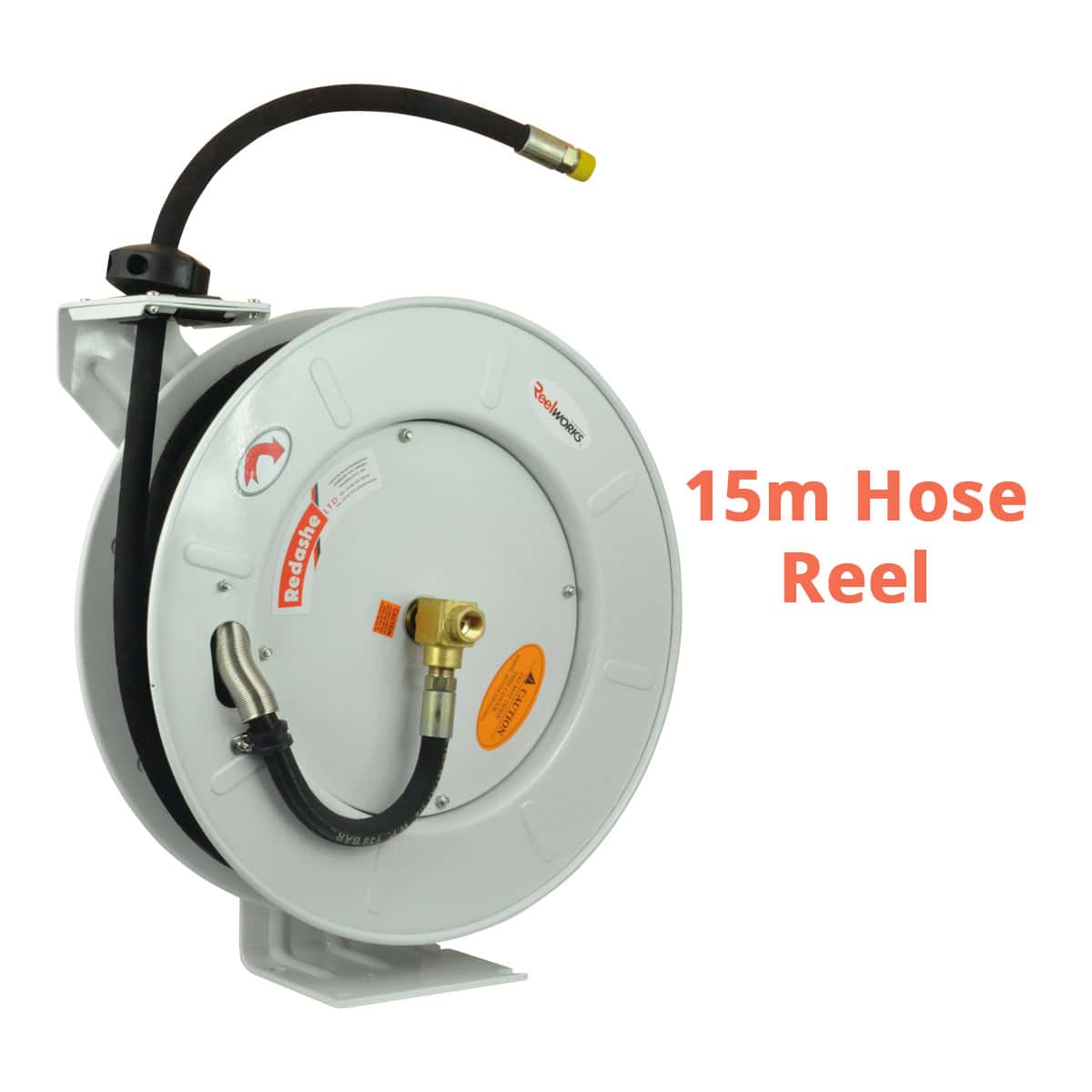

This kit is supplied with a 15 metre delivery hose reel and a digital nozzle
Please note that this kit requires a compressed air feed hose and connection to operate properly
What does a 3:1 ratio mean?
This means that the pump multiplies the air-input pressure by three to create fluid-output pressure, so an air supply of 100 psi will result in a fluid output of 300psi. This ratio is determined by the effective area of the air piston compared to the fluid piston.
Application: A 3:1 ratio is suitable for pumping low to medium viscosity fluids over longer distances. It is often used in workshops for transferring oil or other fluids to multiple locations.
Pump Specifications:
- Ratio: 3:1
- Working Pressure: 2 – 10 bar (30-150psi)
- Max. Fluid Pressure: 30 bar (450psi)
- Air Consumption: @10 bar – 100L/min
- Output Capacity: 20 L/min
- Suction Tube Diameter: 42mm
- Air Inlet Connection: 1/4″ quick plug
- Oil Delivery Connection:1/2″ male
- Max. Viscosity: SAE 130
- Test media SAE30 oil at 20°C through 2mtr hose length free outlet
- 15 Metre delivery hose reel & digital nozzle

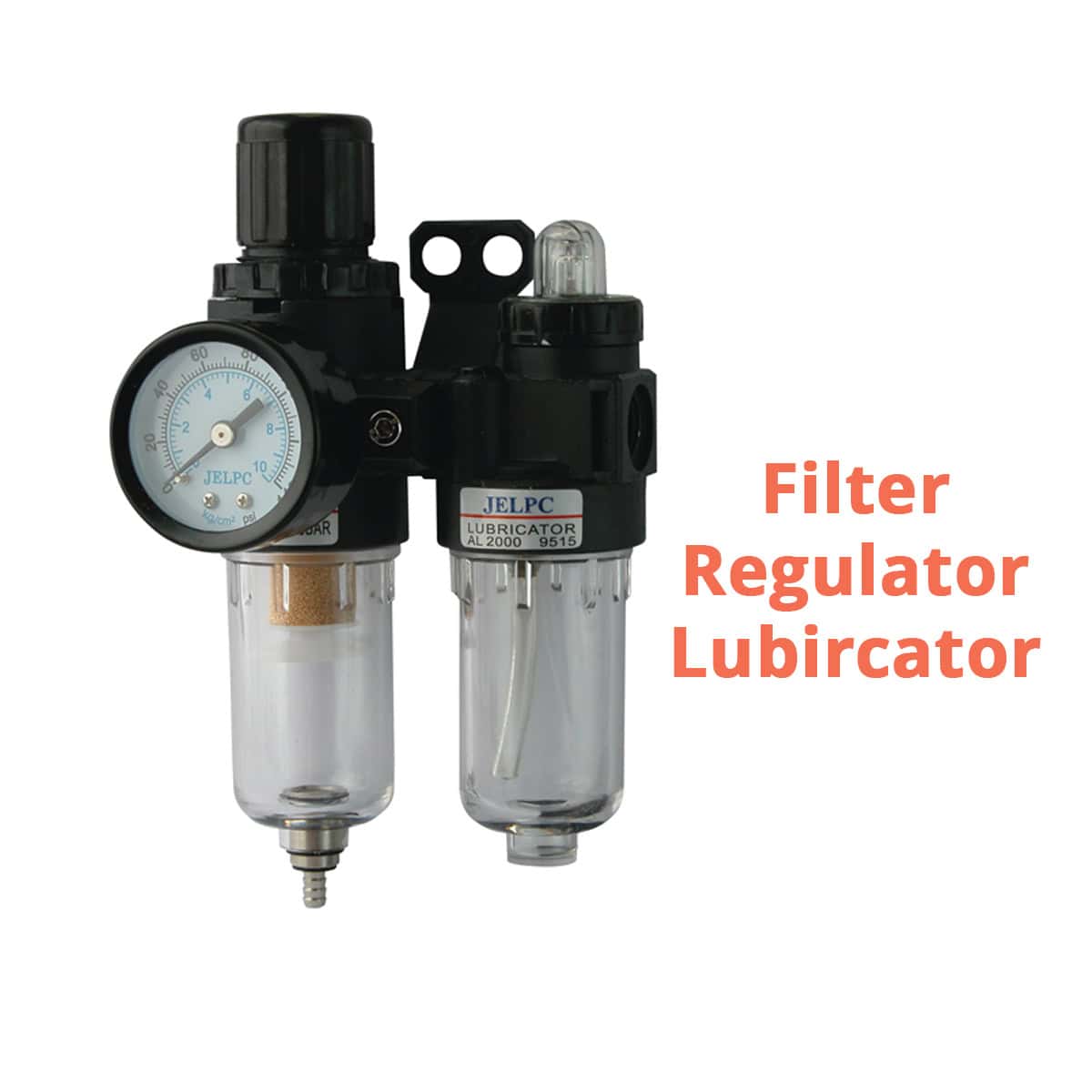

Air Inlet and Regulator Specifications:
- Operating fluid: Air
- Adjustable pressure range: 0.5 – 8.5 bar
- Max working pressure: 15 bar
- Inlet/outlet: 1/8” – 1/2” BSP
- Temp range: 5-60°C
- Suggested Lubricant: ISO VG32 or same grade oil
- Material (body) cup: Die cast aluminium PE
- Capacity of oil cup 25cc
Need a different Lube Oil Pump?
We currently offer no less than 5 air operated lube oil pumps. Therefore, if this pump model doesn’t suit your workshop, please download our ‘Lube Oil Pump Selector Guide’ from the Technical Documents tab on this web page. Or call our sales team on: 0330 990 1100
