5:1 Air Operated Oil Pump and Air Regulator

Name: 5:1 Air Operated Oil Pump and Air Regulator
Brand: Atlantis Tanks
SKU: PUM.AOP.5:1-BARE
Price: 471.60
Availability: InStock

Rated 0 out of 5

If you're Trade - Buy Direct / Login to view price

Our Resellers

SKU: PUM.AOP.5:1-BARE Categories: Air Operated Pumps, Accessories, Pumps

Description

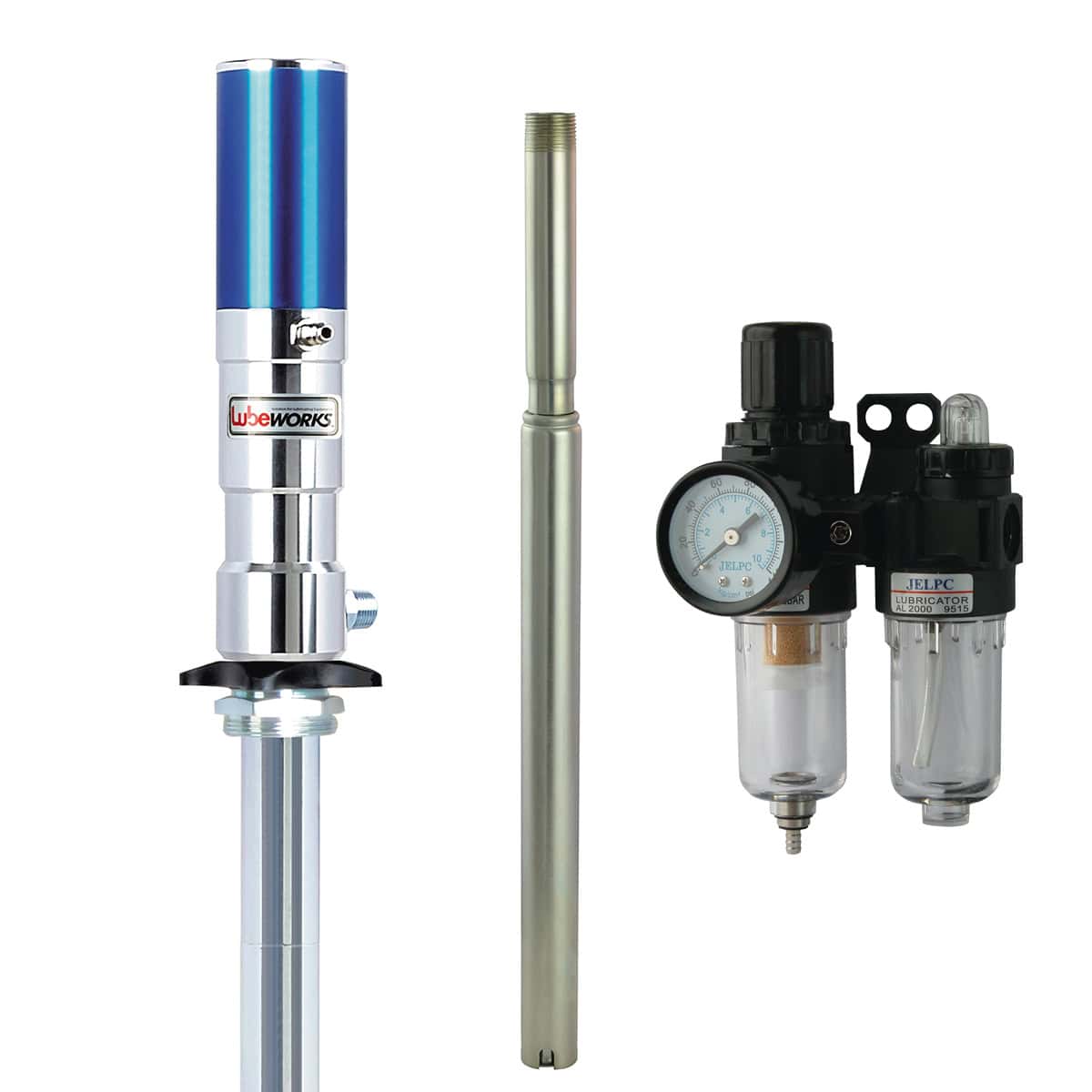

5:1 Air Operated Oil Pump and Air Regulator (hose and nozzle not included) – PUM.AOP.5:1-BARE

This air operated pump kit has been specially designed to work with our new Imperium® Lube Oil Tank range

Description

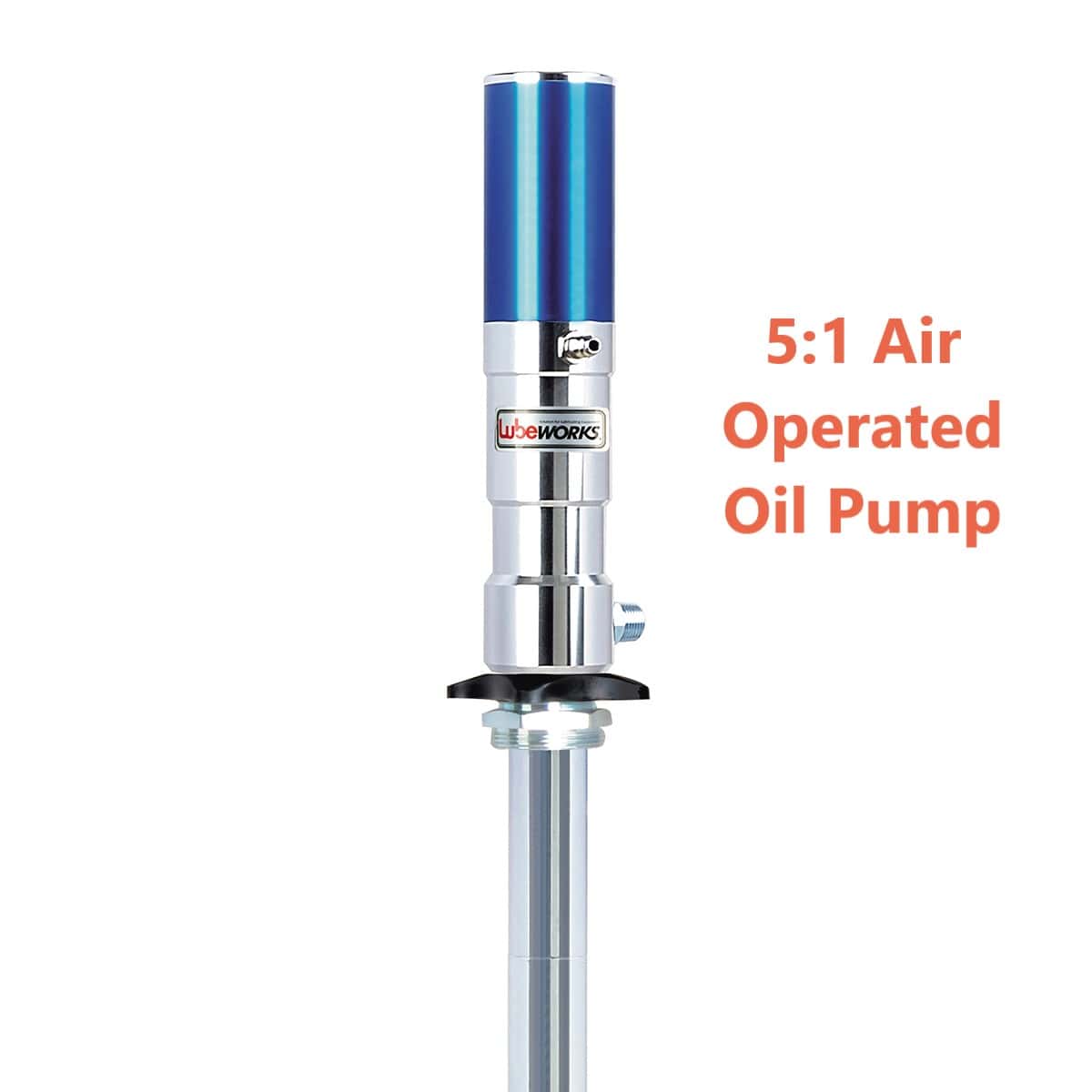

This pneumatic oil pump is designed and constructed to give outstanding performance in all workshop environments. and is suitable to cover every type of application in the automotive, agricultural, commercial vehicle and heavy plant workshops.

Low noise level air motors are used that will provide years of trouble free service. Typically used in workshops, service stations, fast lube centres, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc

Please note that this kit requires a compressed air feed hose and connection to operate properly

What does a 5:1 ratio mean?

In this case, the pump multiplies the air-input pressure by five to achieve the fluid-output pressure. For example, if the pump is supplied with 100psi of air, it can generate up to 500 psi of fluid pressure.

Application: A 5:1 ratio is commonly used in workshops for transferring oil lubricants with medium to high viscosity from storage units to multiple service points

Pump Specifications:

Ratio: 5:1
Working Pressure: 2 – 10 bar (30/150psi)
Max. Fluid Pressure: 50 bar (750psi)
Air Consumption: @10 bar – 78L/min
Output Capacity: 18L/min
Suction Tube Diameter: 42mm
Air Inlet Connection: 1/4″ quick plug
Oil Delivery Connection:1/2″ male
Max. Viscosity: SAE 240
Test media: SAE 30 oil @ 20°C through 2mtr hose length free outlet

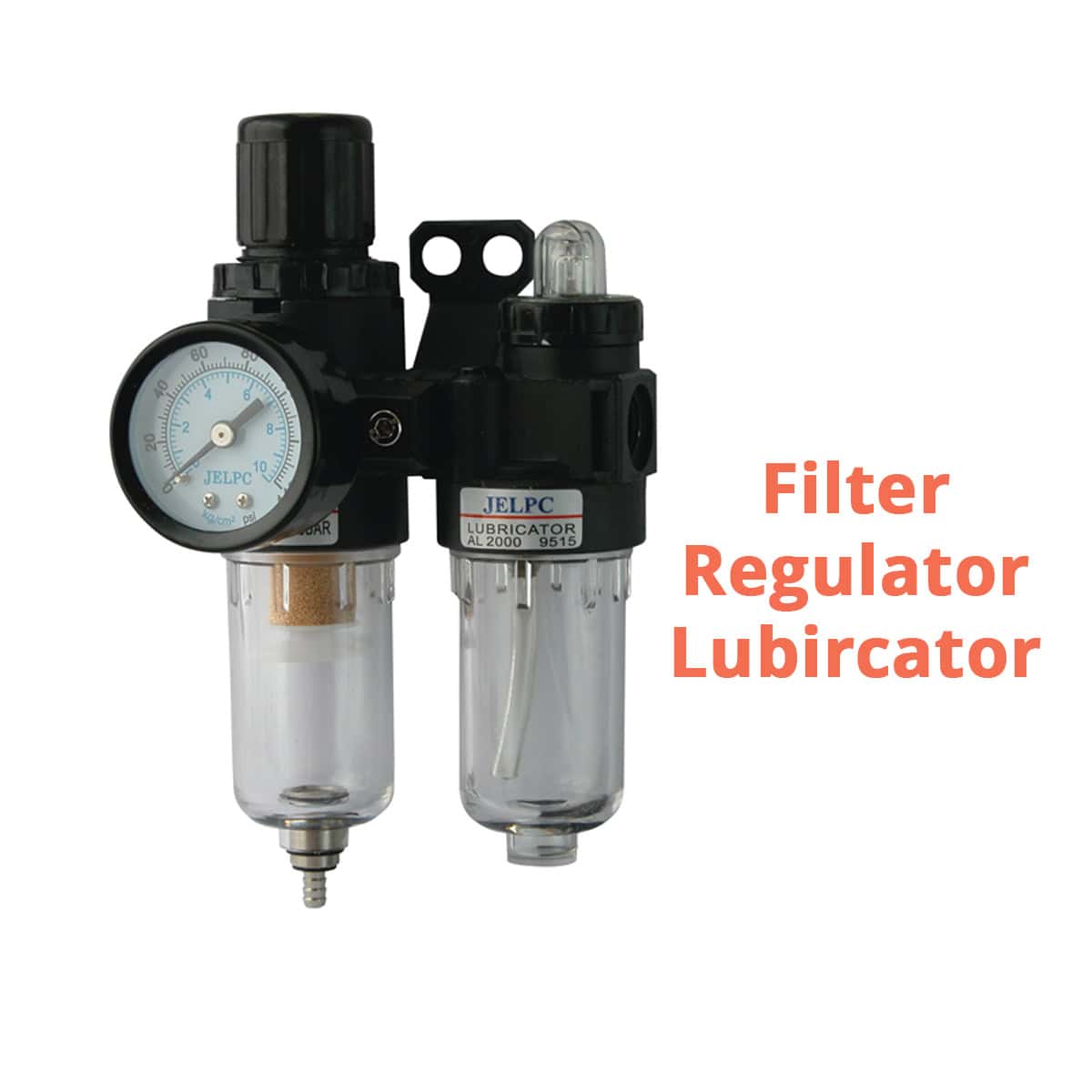

Air Inlet and Regulator Specifications:

Operating fluid: Air
Adjustable pressure range: 0.5 – 8.5 bar
Max working pressure: 15 bar
Inlet/outlet: ¹/₈” – ¹/₂” BSP
Temp range: 5-60°C
Suggested Lubricant: ISO VG32 or same grade oil
Material (body) cup: Die cast aluminium PE
Capacity of oil cup 25cc

Specification Document

Lube Oil Pump Selector Guide

Download Document
