Description

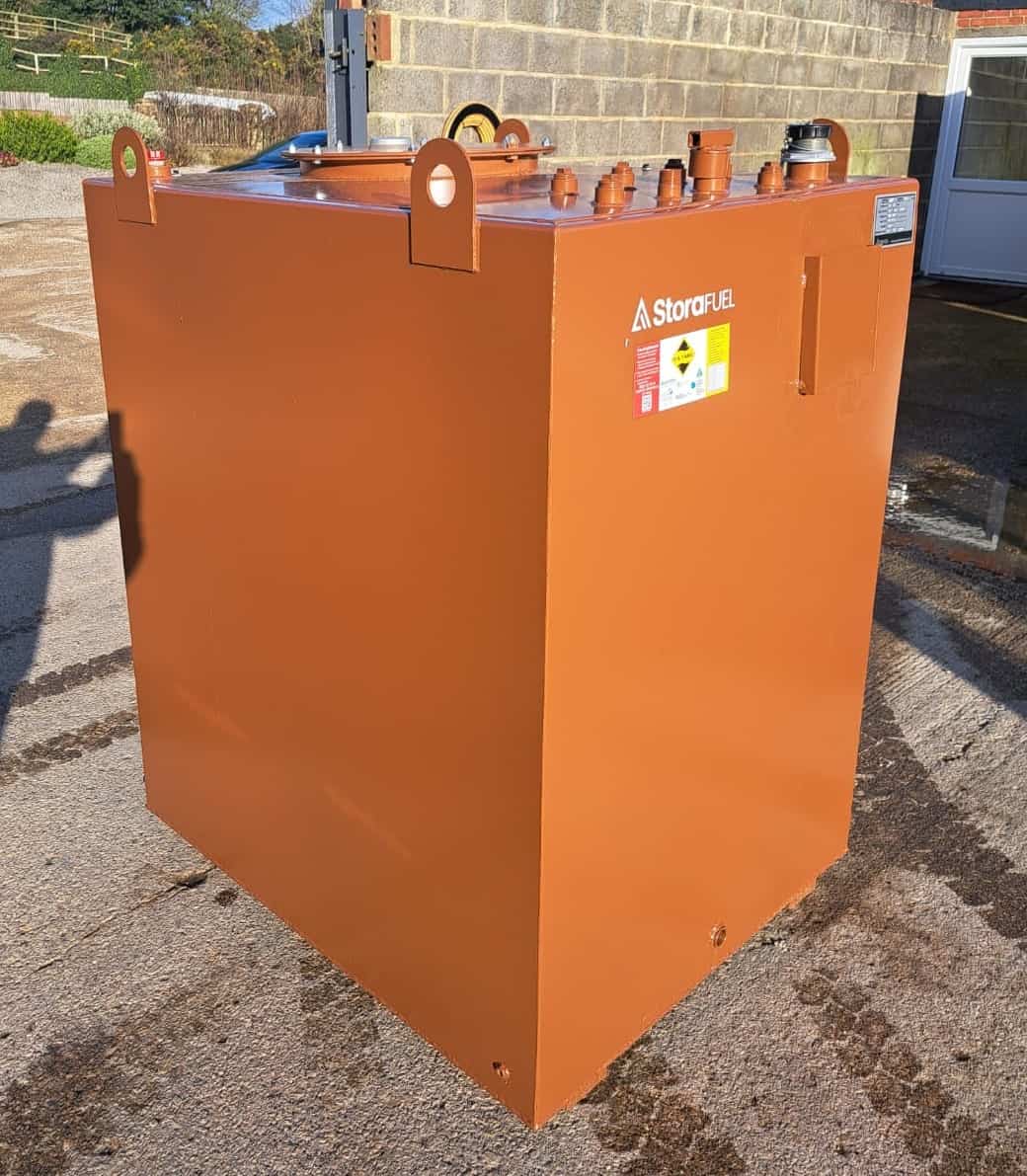

1150 Litre Steel Bunded Day Diesel Tank
x2 tanks available
- Outer Tank: L) 1200mm W) 1000mm H) 1400mm
- Inner Tank: L) 1000mm W) 920mm H) 1400mm
- Brimfull Capacity: 1288 Litres
- Nominal Capacity: 1223 Litres
- Useable Capacity (c/w OPV): 1150 Litres
Compliance:
- This tank is made in accordance with BS799pt5 c/w Internal tank bracing
- Material: Steel to BS EN 10025-2:2004 S275JR
- Outer tank forms the required bund, with capacity for 110% of the total liquid being stored.
- 10 year tank warranty (subject to tank maintenance, outlined in warranty manual)
Standard Tank Connections:
- 610mm Manway
- 1 no 2″ fill point c/w drip cap & chain
- 1 no 2″ tank to bund vent
- 1 no 2″ bund to atmosphere vent
- 1 no 1” top feed and return connections for generator
- 1 no 1” bottom outlet with internal isolation valve & T-bar handle
- 5 no 1.5″ tank sockets
- 1 no 1.5″ bund socket (rear of tank)
- Mounted on full width bearers
- Lifting eyes (for lifting when empty)
Tank Finish:
Surface preparation ST2.
We then apply a Zinfos 340 WS solvent borne high performance anti-corrosive one coat system, multi surface self-priming mid sheen topcoat (50% gloss).
Applied to give a wet film thickness of 150 microns and dry film thickness of 75 microns.
Tank Colour – Saddle Brown 06 C 39
SOLD AS SEEN
