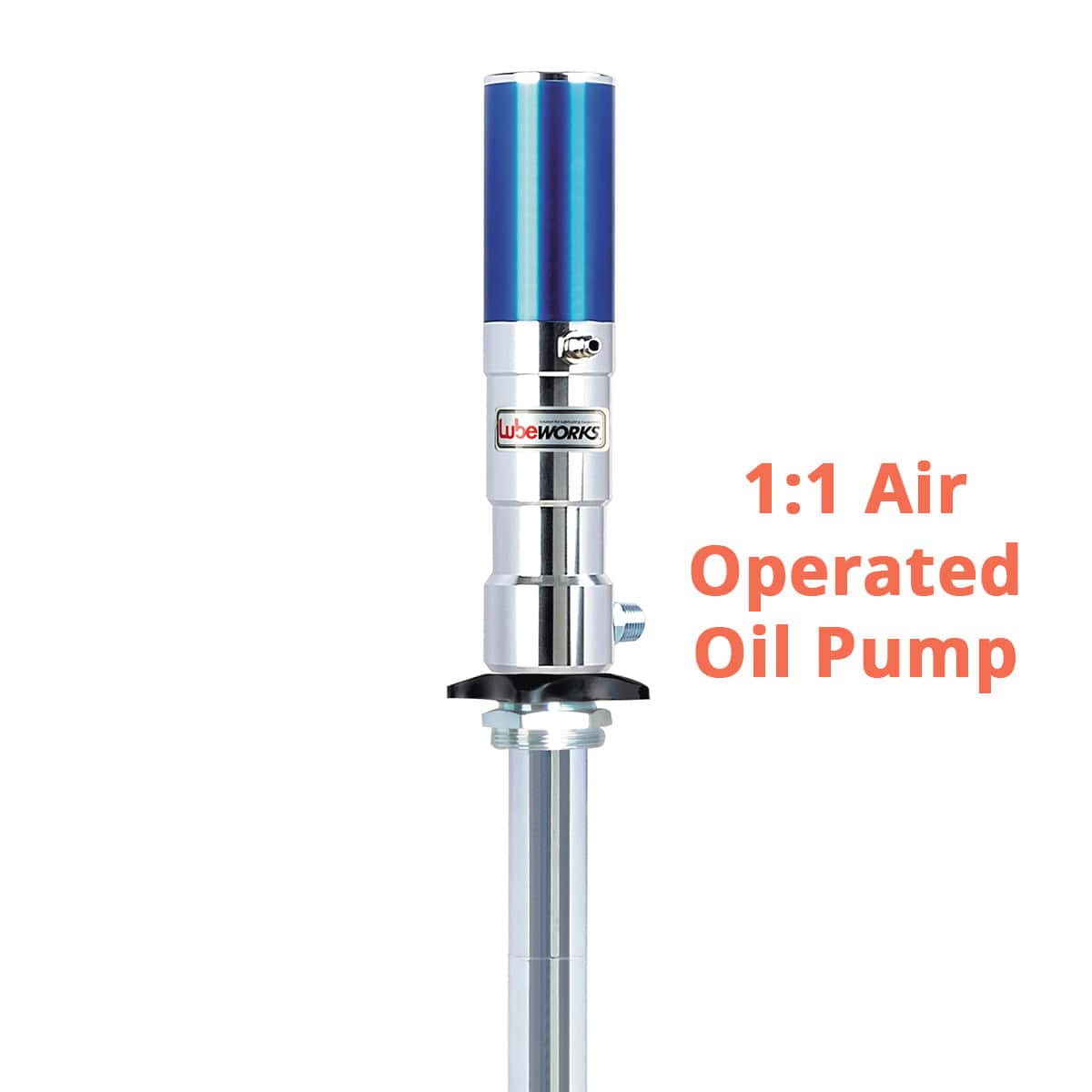

1:1 Air Operated Oil Pump and Air Regulator
1:1 Air Operated Oil Pump and Air Regulator - Image 2
1:1 Air Operated Oil Pump and Air Regulator - Image 3
1:1 Air Operated Oil Pump and Air Regulator - Image 4
PUM.AOP.1:1-BARE

1:1 Air Operated Oil Pump and Air Regulator

Rated 0 out of 5
(0 reviews)

If you're Trade - Buy Direct / Login to view price

Our Resellers
SKU: PUM.AOP.1:1-BARE Categories: , ,

Description

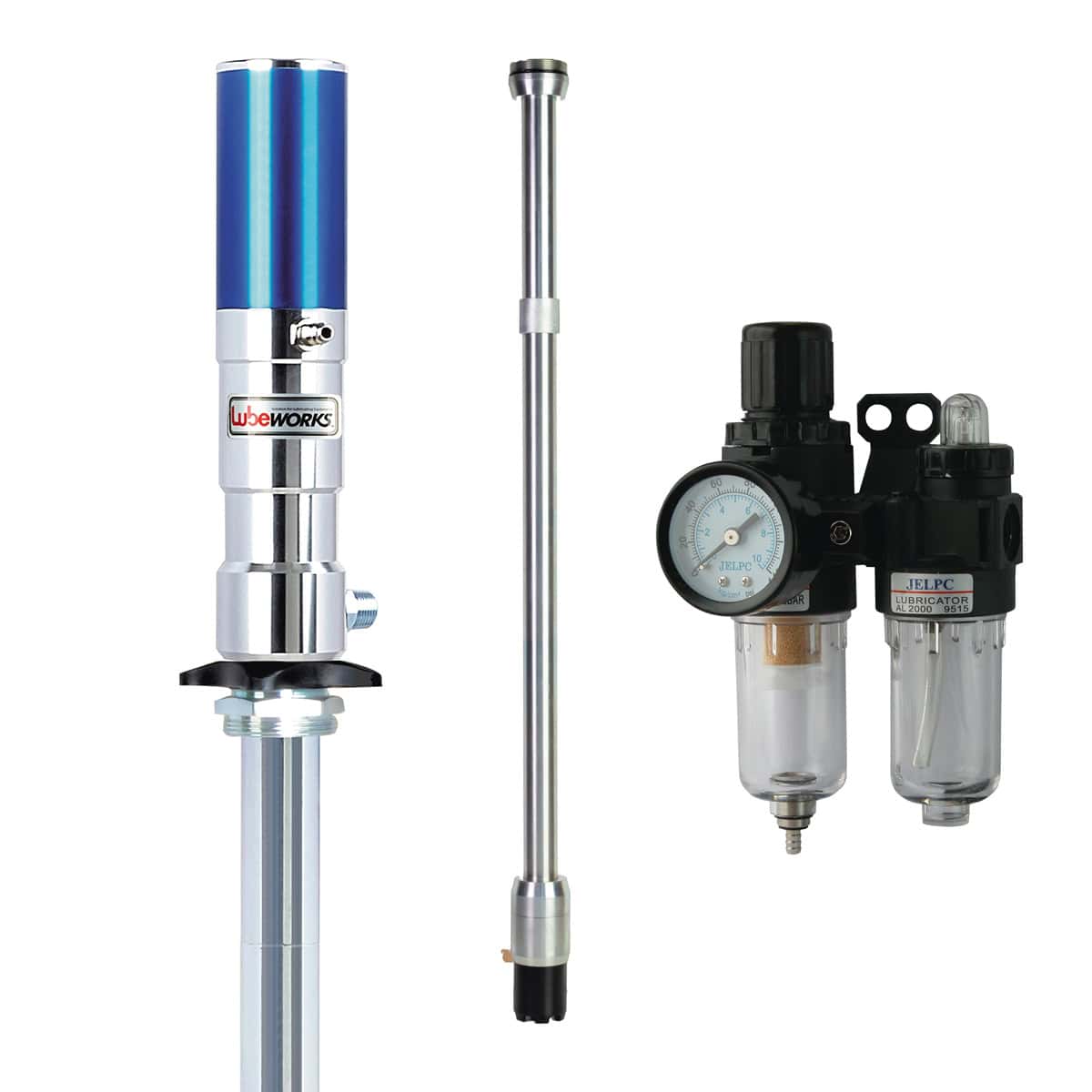

1:1 Air Operated Oil Pump and Air Regulator (hose and nozzle not included) – PUM.AOP.1:1-BARE

This air operated pump kit has been specially designed to work with our new Imperium® Lube Oil Tank range

Description

This pneumatic oil pumps is designed and constructed to give outstanding performance in all workshop environments. and is suitable to cover every type of application in the automotive, agricultural, commercial vehicle and heavy plant workshops.

Low noise level air motors are used that will provide years of trouble free service. Typically used in workshops, service stations, fast lube centres, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc

Please note that this kit requires a compressed air feed hose and connection to operate properly

What does a 1:1 ratio mean?

This means that the pump’s fluid discharge pressure is equal to the air inlet pressure. For every one PSI of air pressure supplied to the pump, it generates one PSI of fluid pressure. This type of pump is ideal for transferring low-viscosity fluids over short distances and is often used in applications where a gentle, low-pressure transfer is needed.

Pump Specifications:

  • Ratio: 1:1
  • Working Pressure: 2 – 10 bar (30/150psi)
  • Max. Fluid Pressure: 10 bar (150psi)
  • Air Consumption: @10 bar – 100L/min
  • Output Capacity: 35L/min
  • Suction Tube Diameter: 52mm
  • Air Inlet Connection: 1/4″ quick plug
  • Oil Delivery Connection:1/2″ male
  • Max. Viscosity: SAE 80
  • Test media SAE 30 oil at 20°C through 2mtr hose length free outlet

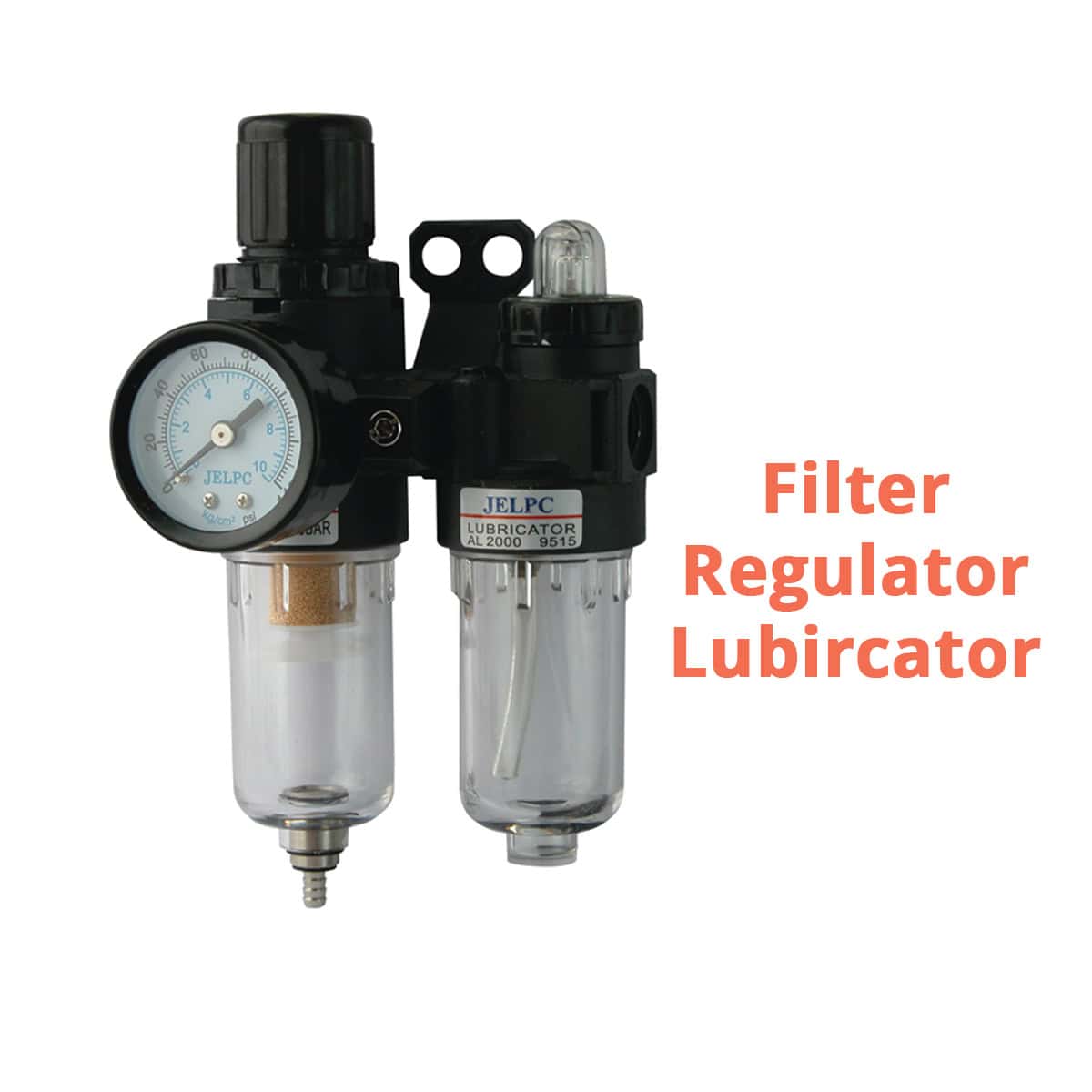

Air Inlet and Regulator Specifications:

  • Operating fluid: Air
  • Adjustable pressure range: 0.5 – 8.5 bar
  • Max working pressure: 15 bar
  • Inlet/outlet: 1/8″ – 1/2″ BSP
  • Temp range: 5 – 60°C
  • Suggested Lubricant: ISO VG32 or same grade oil
  • Material (body) cup: Die cast aluminium PE
  • Capacity of oil cup 25cc

Need a different Lube Oil Pump?

We currently offer no less than 5 air operated lube oil pumps. Therefore, if this pump model doesn’t suit your workshop, please download our ‘Lube Oil Pump Selector Guide’ from the Technical Documents tab on this web page. Or call our sales team on:  0330 990 1100

Specification Document

Lube Oil Pump Selector Guide

Download Document
