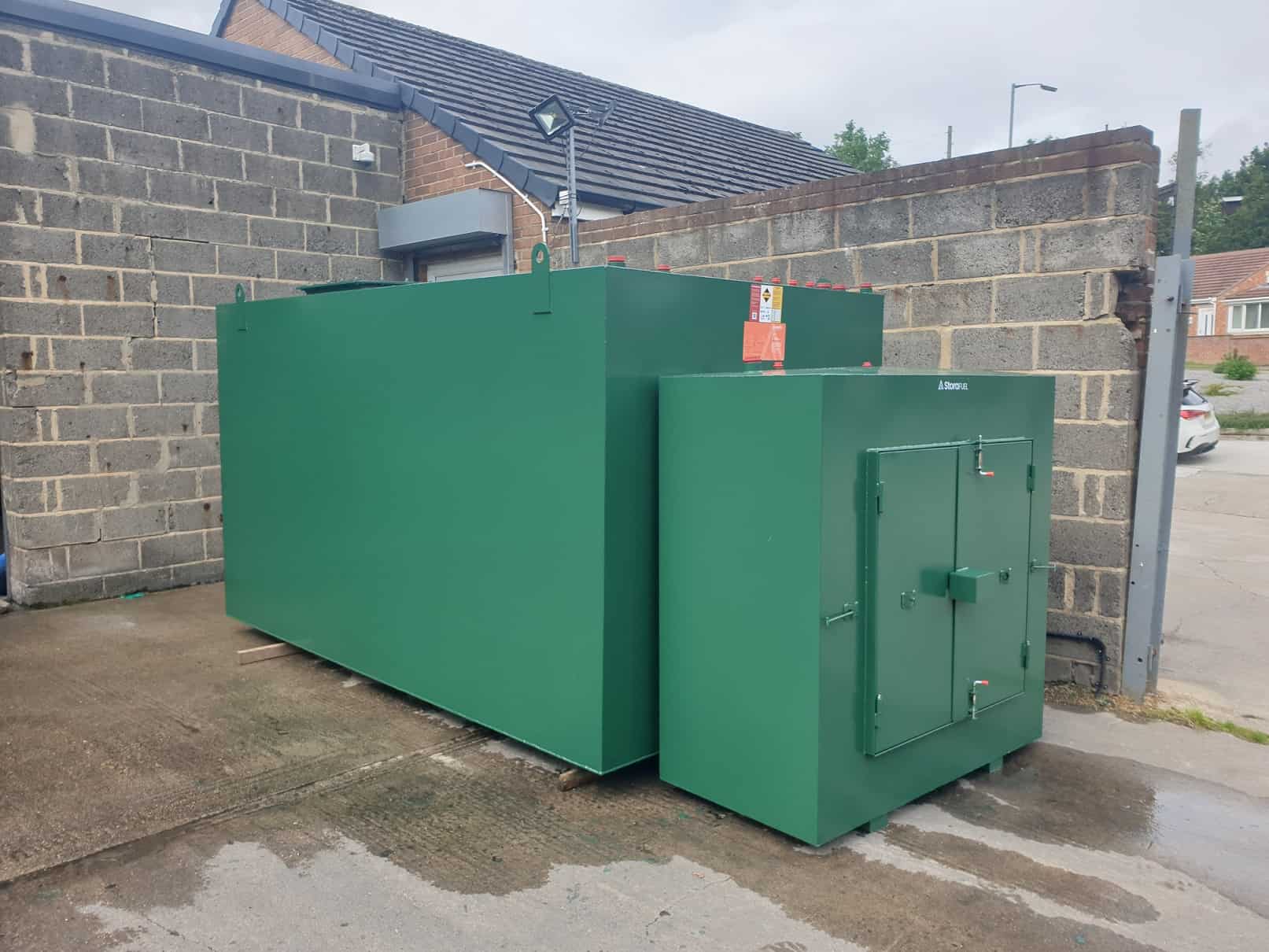

Bespoke 10’000 Litre Steel Bunded Diesel Tank c/w Remote Pump & Fill Cabinet
10’000 Litre Bunded Steel Tank
Tank & Bund:
A 10000-litre steel bunded diesel tank with a remote pump and fill cabinet which is suitable for commercial applications.
The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations. This tank is suitable for the storage of Derv (white diesel) or Gas Oil (red diesel). A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail. However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment.
Compliance:
This tank is made in accordance with BS799 pt5
Specifications:
The tank pictured was supplied in the following spec, but we can change this according to your requirements
Tank: (L) 3350mm (W) 1830mm (H) 1830mm
- 10’000 litre (2200 galls) capacity
- 1 x 2″ fill point c/w overfill prevention valve
- 2 x 1″ suction outlets c/w suction ports
- 2 x 1″ return sockets
- 2 x 2″ spare tank ports
- 1 x 1.5″ bund gauge port
- 1 x 1.5″ tank gauge port

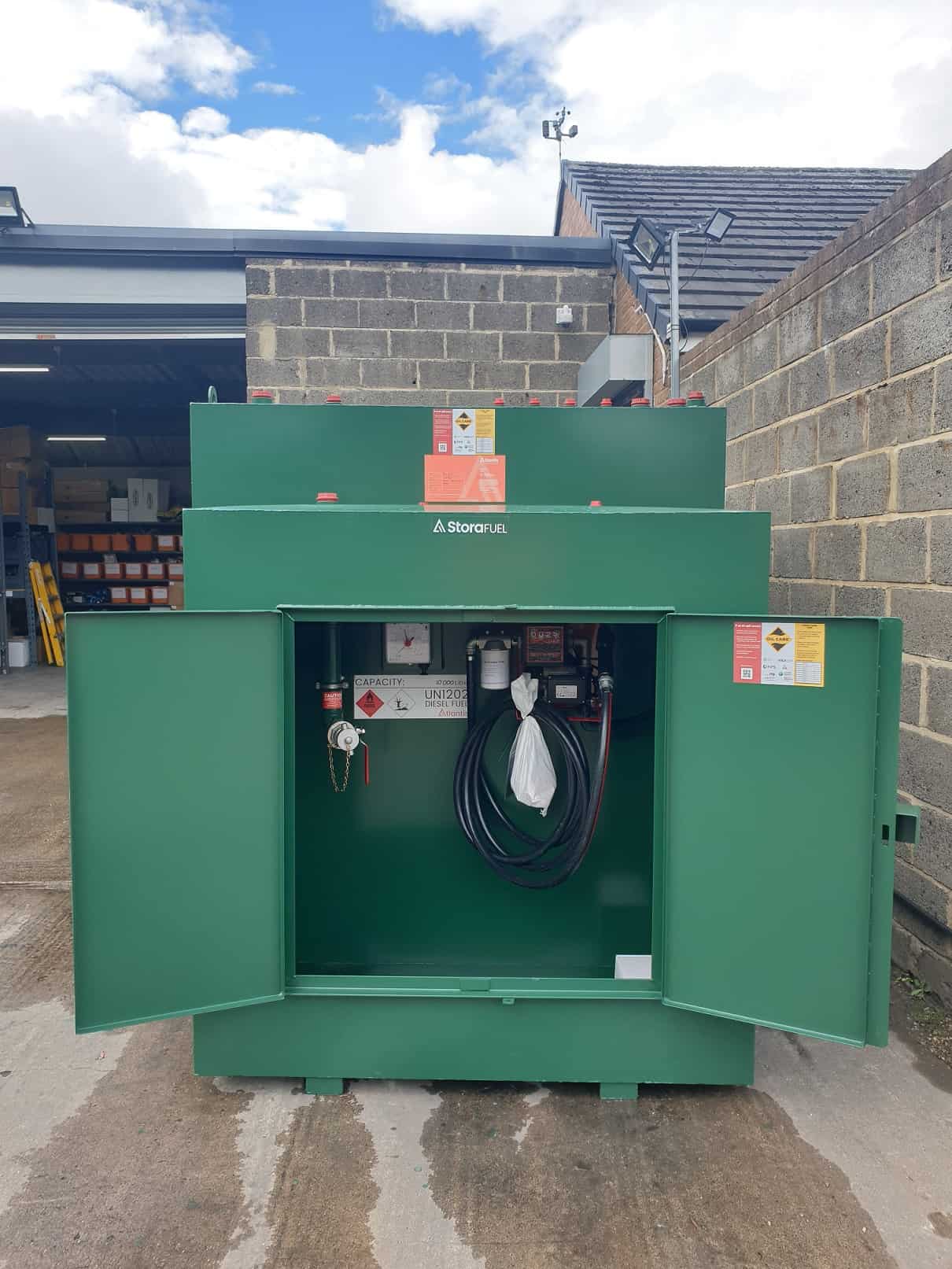

Remote Fill Point Cabinet: (L) 750mm (W) 1525mm (H) 1525mm
- 1 x 1″ port for probe
- 1 x 1″ pump feed socket
- 1 x 2″ fill point connection c/w lever ball valve & non return valve
- 1 x 230v Pump mounted in cabinet, 6m hose, flow meter, auto nozzle, filter
- Hydrostatic (%) unitel gauge
