Description

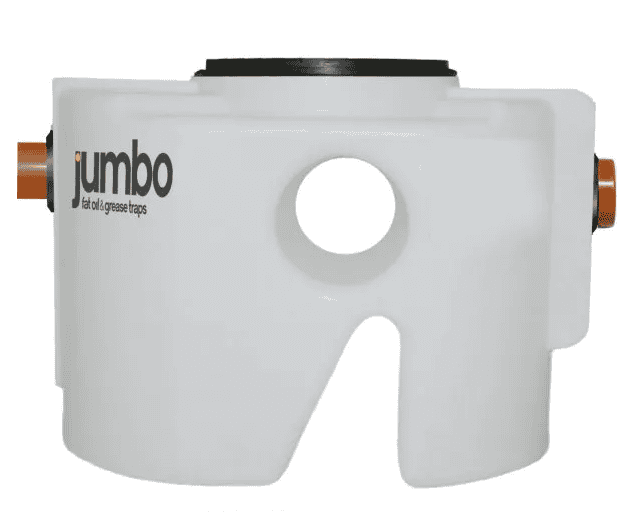

300 Litre Underground Grease Trap c/w 110mm pipework
Wastewater from commercial kitchens is contaminated with FOGS (fats,oils and greases). The introduction of FOG’s and food solids into the general drainage/sewage system (either main sewage network or private treatment facilities) is detrimental to its proper function and has been shown to be a significant cause of blockages, restrictions and so increasing flood risk.
So it is essential that well designed Grease Management Products and Systems are installed by catering establishments, food processing facilities and any other locations where there is a need to protect the drainage system from blocking up due to FOG’s solidifying.
Thi grease trap is one such product. Designed in the UK and first launched into the market in 2009 it’s in conformity with the then draft standard BS EN1825 and also the existing UK Building Regulations Part H.
How it works :
FOG’s and food solids enter the grease trap and immediately the lighter oils and grease will begin to separate out in the cooler water already inside the trap. Food solids within the influent being heavier than the immiscible fluids will drop to the base of the first chamber where they are trapped behind the stepped baffle. The grease trap’s unique hollow and step baffle design support greater waste/solids retention and also create and optimise the flow path of the waste water, forcing lighter FOG’s to rise to the top of the unit in so greatly reducing the amount of FOG’s discharging from the trap and entering the drainage system.
Dimensions:
- Length: 1200mm
- Width: 720mm
- Height: 820mm
Features & Design
- Suitable for underground or above ground installations
- Unique patented design
- Hollow baffle and base step provide strength and optimise flow path
- Proven gravity separation technology
- Designed in accordance to BSEN1825
- Nominal Sizes NS1 & NS2
- Manufactured from highly robust & durable HDPE
- Corrosion Free – 50 year plus life expectancy
- Full accessibility for maintenance
- Designed and manufactured totally in the UK
