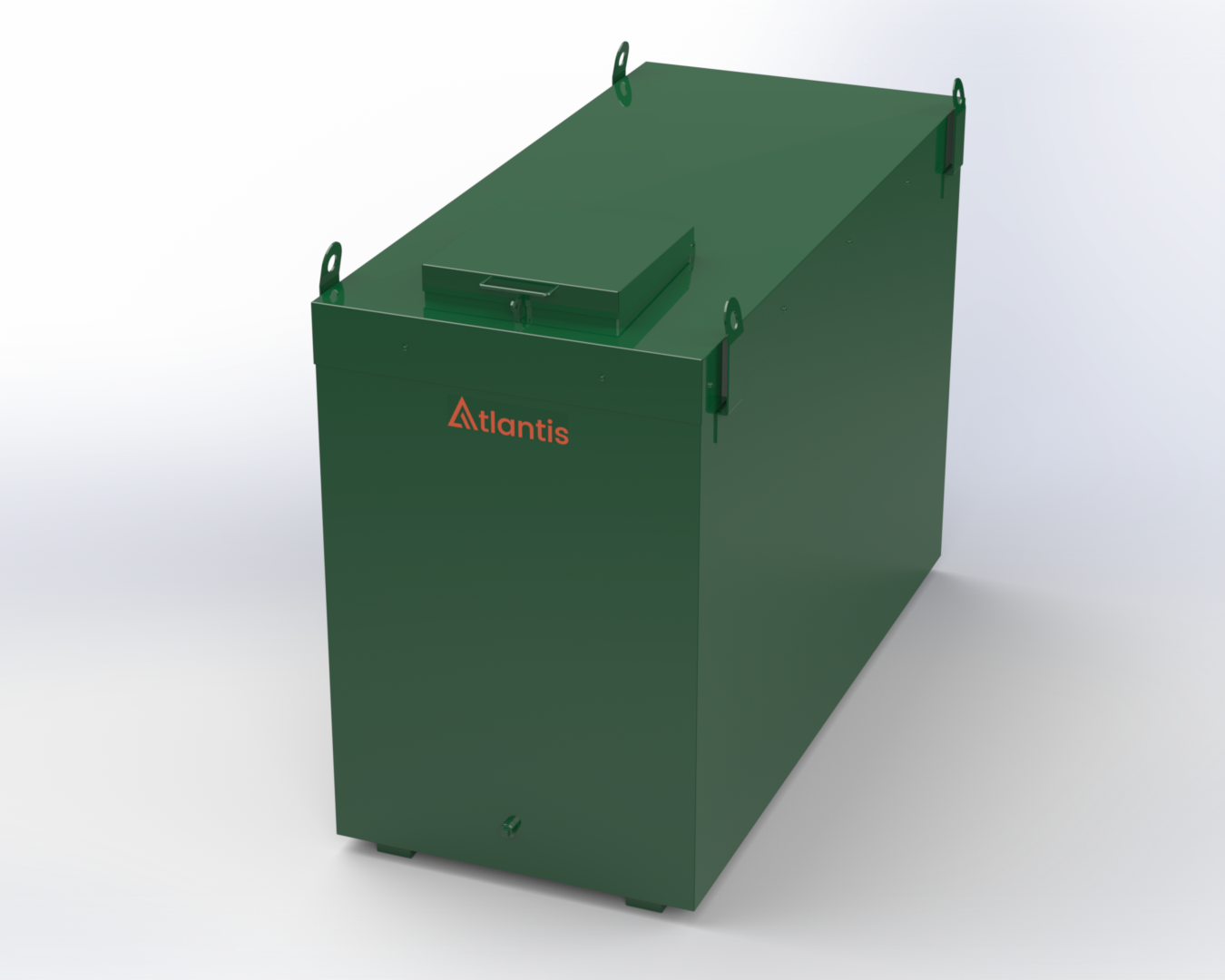

1050 Litre Triple Skinned Bunded Steel Tank with 60 min Integral Fire Resistance – TAN.FPS.60-1050

Oil Installers - Share your install photos of this oil tank and win another! Click 'n Enter

Tank & Bund:

A 1050 litre triple skinned bunded steel oil tank with 60 min integral fire resistance which is suitable for both domestic and commercial applications.

The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity and the third tank provides the housing for the integral fire barrier.  This tank is suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids (please check before usage).  A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail.  However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment.

These tanks are manufactured to the highest standards and conform to BS799 pt5. The thickness of the steel used varies with tank size and all tanks are pressure tested before they leave the workshop. Furthermore, these tanks are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection.  If you would like to purchase this paint separately, please click here.   We recommend painting your steel tank once a year to achieve the maximum lifespan.

This steel tank is a good option if you are wanting to deter any opportunist in oil theft which is very much on the rise currently, especially if the security lid option has been chosen.

Compliance:

This tank complies with Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2 and BS799 pt5

Specifications:

• Tough Steel construction
• 60 min integral fire resistance barrier (non absorbent)
• 1 No. 2″ top socket for fill point
• 2 No. 1 1/2″ top socket (for tank & bund gauge)
• 1 No. 2″ tank to bund vent
• 1 No. 2″ bund vent
• 1 No. 1″ bottom outlet socket
• 1 No. 1″ top suction drain socket (plugged)
• Spiral Float Tank Contents Gauge – for explainer video, please click here
• Outlet filter kit (optional extra)
• Mounted on 100mm x 50mm high channel support bearers
• 10 year warranty
• Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
• Standard Colour: Holly Green

Optional extras include:

• Apollo visual contents gauge
• Bottom outlet fitting kit/filter & valve pack (economy or advanced, to see explainer video, please click here)
• Mechanical overfill limiter spill stop device (if this is selected, please note that it will be fitted to the rear 2″ tank socket on the tank as it is only compatible with female threads and the front fill point has a male BSP thread)
• Metal tank paint 1 litre (Green or Black depending on tank colour)
• Steel tank maintenance pack (To get the maximum lifespan out of these steel tanks, we recommend you purchase our steel tank maintenance pack.  View here.  This will help keep your steel tank in prime condition) Includes: 1 Litre Metal Tank Paint, Brush & Roller, Gloves, Tank Sponge for absorbing water
• An Extra top coat of paint can be applied before despatch (this could add an extra day onto the lead time)
• Tank colour change: RAL or BS Colour must be provided with order. (this could add the lead time of up to 1 week)

Warranty:

• 10-year warranty, each tank is provided with a warranty manual

Dimensions:

• Length: 2070mm
• Width: 850mm
• Height: 1430mm
• Weight: 570kg

Recommended Base Size:

Full installation instructions are supplied with the tank.  We recommend along with current regulations a base size which extends 300mm all the way around the tank

• Length: 2670mm
• Width: 1450mm

You can call our sales team for product advice on 0330 999 1100 or more information about the regulations that surround oil storage can be found on the OFTEC website here

To view a product features video, please click here
