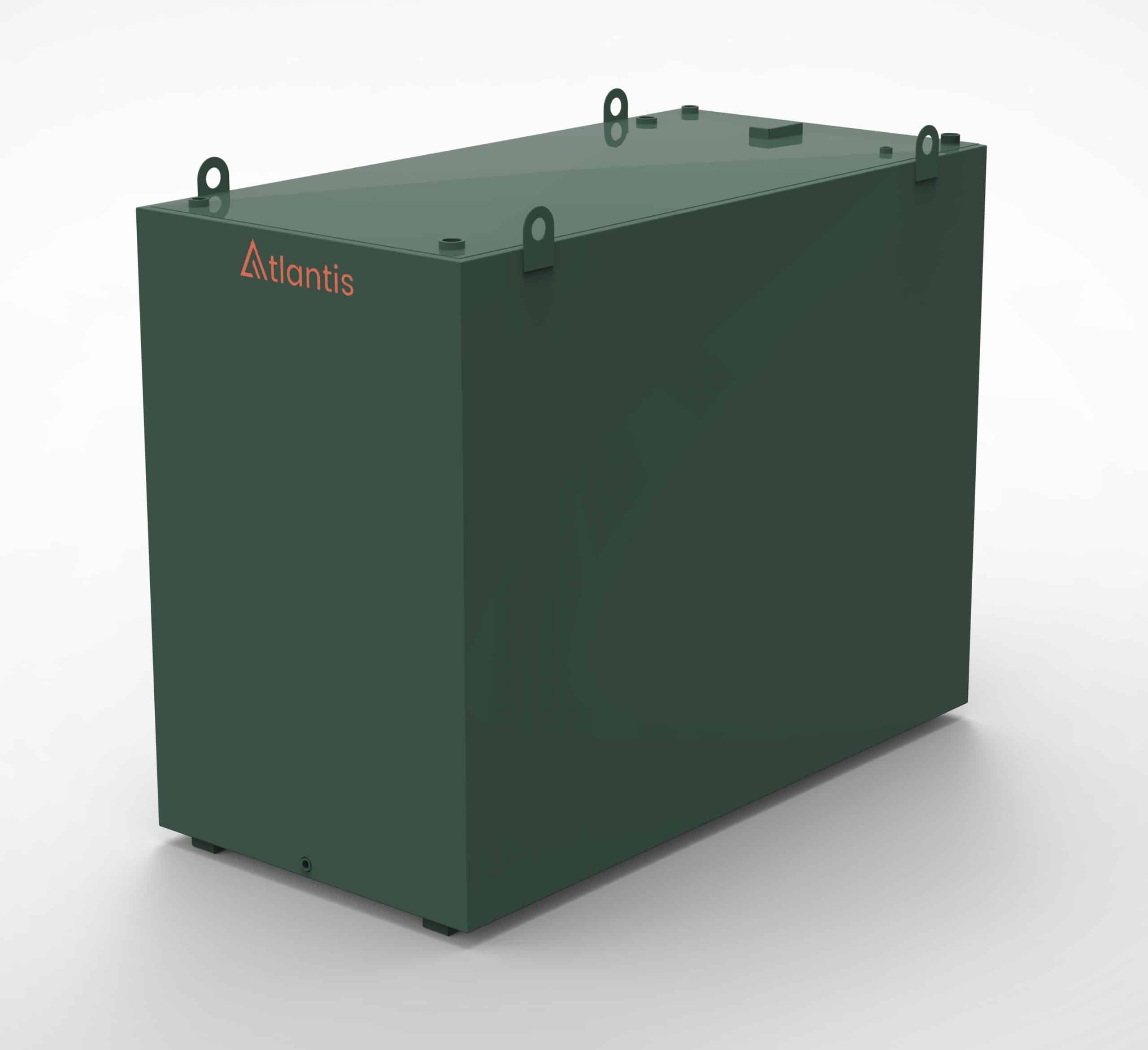

4500 Litre Steel Bunded Oil Tank – TAN.BUS-4500

Tank & Bund:

A 4500-litre steel bunded oil tank which is suitable for both domestic and commercial applications.

The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations.  This tank is suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids (please check before usage). A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail.  However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment.

These tanks are manufactured to the highest standards and conform to BS799 pt5. The thickness of the steel used varies with tank size and all tanks are pressure tested before they leave the workshop. Furthermore, these tanks are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection.  If you would like to purchase this paint separately, please click here.   We recommend painting your steel tank once a year to achieve the maximum lifespan.

This steel tank is a good option if you are wanting to deter any opportunist in oil theft which is very much on the rise currently, especially if the security lid option has been chosen.

Compliance:

This tank complies with: Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2 and BS799 pt5

Specifications:

• 4500 litre (990 galls) capacity
• 2” fill point
• 2″ top socket as a spare connection
• 1″ bottom outlet
• 1.5″ port for a gauge
• 1.5″ port for bund gauge
• Tank to bund vent
• Bund vent
• 1″ top suction drain port
• 50mm x 100mm full-length bearers
• Pitched roof design
• Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
• Standard Colour: Holly Green

Optional extras include:

• Top outlet to replace the bottom outlet (please contact our sales office if this option is required)
• Apollo visual contents gauge or…
• Clock face gauge or spiral float gauge (to see explainer video, please click here)
• Bottom outlet fitting kit/filter & valve pack (economy or advanced, to see explainer video, please click here)
• Mechanical overfill limiter spill stop device
• The lockable lid which houses all top connections (excl. bund vent) within the lockable area (this could add a lead time of up to 1 week)
• Metal tank paint 1 litre (Green or Black depending on tank colour)
• Steel tank maintenance pack (To get the maximum lifespan out of these steel tanks, we recommend you purchase our steel tank maintenance pack. View here. This will help keep your steel tank in prime condition) Includes: 1 Litre Metal Tank Paint, Brush & Roller, Gloves, Tank Sponge for absorbing water
• An Extra top coat of paint can be applied before despatch (this could add an extra day onto the lead time)
• Tank colour change: RAL or BS Colour must be provided with order. (this could add a lead time of up to 1 week)

Warranty:

• 10-year warranty, each tank is provided with a warranty manual

Dimensions:

• Length: 2440mm
• Width: 1220mm
• Height: 1830mm
• Weight: 930kg

Recommended Base Size:

Full installation instructions are supplied with the tank.  We recommend along with current regulations a base size which extends 300mm all the way around the tank

• Length: 3040mm
• Width: 1820mm

You can call our sales team for product advice on 0330 999 1100 or more information about the regulations that surround oil storage can be found on the OFTEC website here

To view a product features video, please click here
